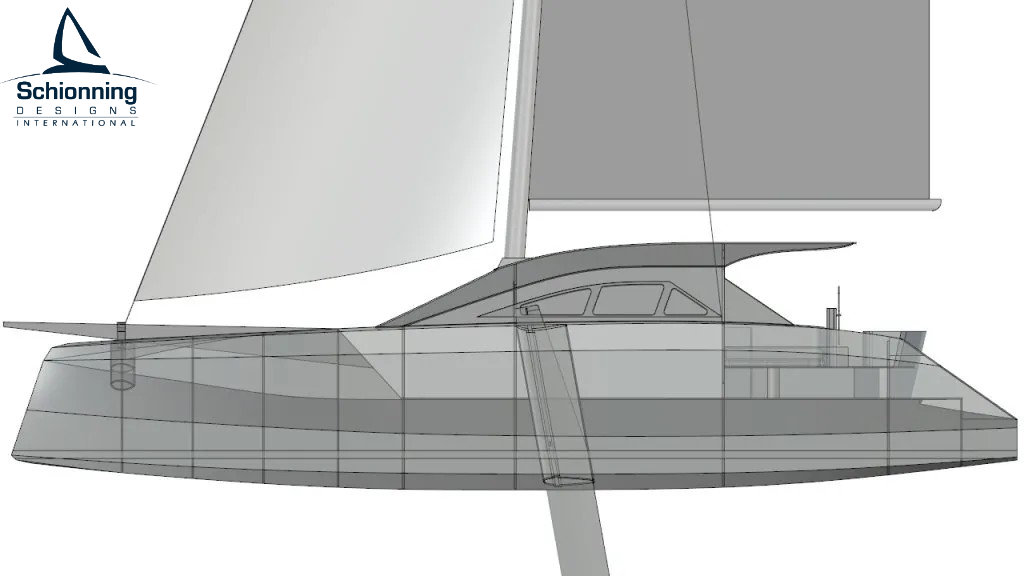

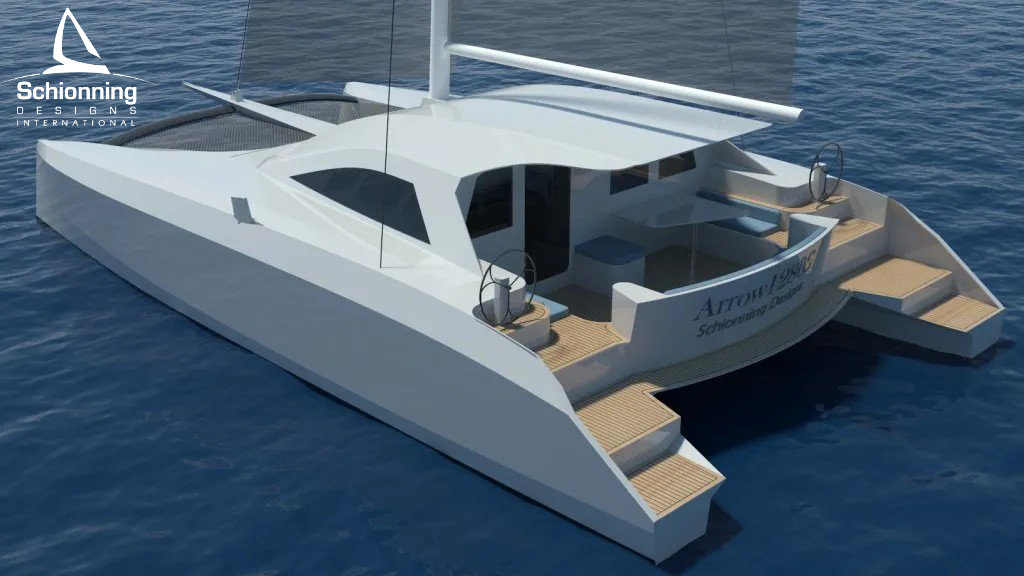

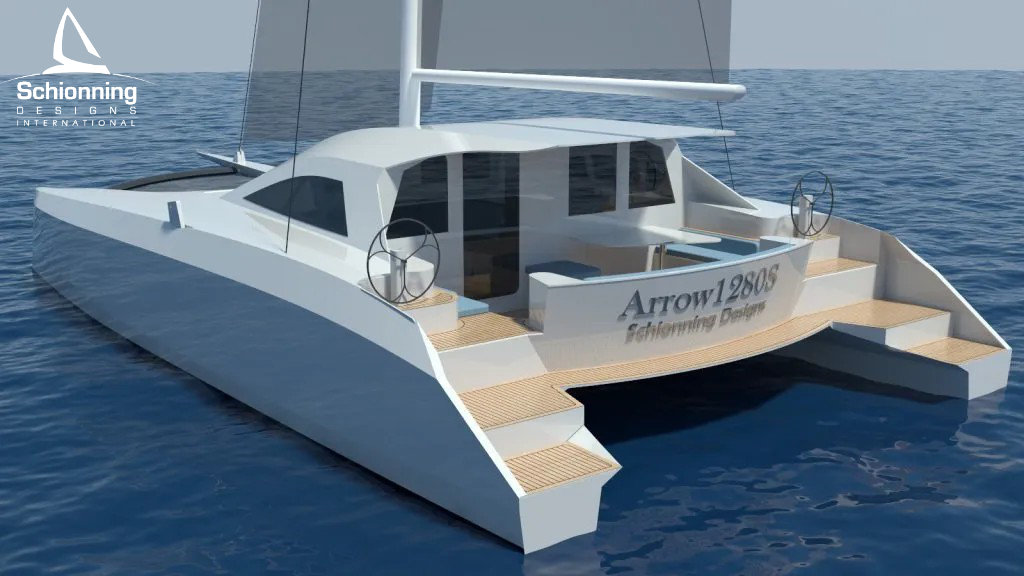

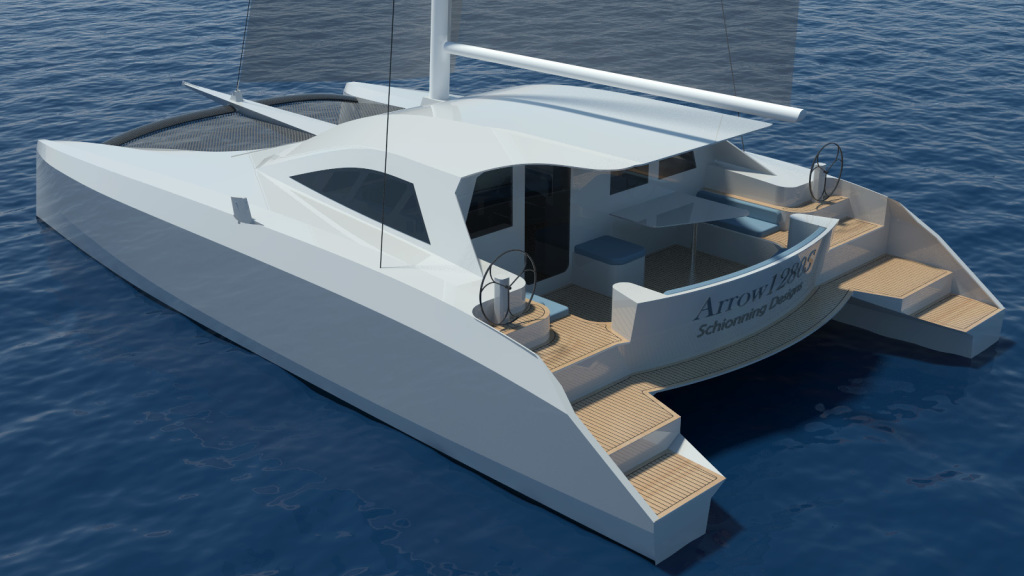

Arrow 1280 S

Specifications

LOA    12.80 metres
BOA    6.80 metres
DRAFT    0.400 metres
HEADROOM (Hulls)    Full Standing
HEADROOM  (Bridgedeck)    Full Standing
MAST HEIGHT    17.00 metres
SAIL AREA (Main)    67 sq metres
  SAIL AREA (Jib)    31 sq metres
PAYLOAD    1500 kg
DISPLACEMENT    4500 kg
BRIDGEDECK CLEARANCE    0.750 metres
BEAM TO LENGTH RATIO    15.2:1
MOTOR OPTION   1 x 30-60hp O/B or Twin 20hp Diesels
CRUISING SPEED    16 – 19 knots
TOP SPEED    25+ knots

If you are interested in building a semi custom Arrow 1280 contact us.  Our current build is available for customization.

Fit and Finish Details

  • Hull and deck:  epoxy resin infused closed cell core flat panels with fiberglass cloth.  Carbon fiber used in high load areas (fore beam to hull bulkheads), daggerboards, dagger trunks, forestay, and rudders.
  • Mast – Carbon (Est. Delivery Aug 2024 – NZ Rigging)
    • Aramid rigging
    • Furling/Self Tacking Jib
    • Carbon fiber park avenue boom with sail jacks
  • Sails – Evolution
    • Main – Element Membrane (Liteskin) Color Black
      • 61 m2
      • 70/30 carbon/twaron
      • 3 Reefs
      • Full batten squaretop
    • Self Tacking Furling Jib
      • 35 m2
      • Liteskin
      • Black
      • Vertical Battens
    • Screecher
      • 73 m2
      • Evo Technora
      • Continuous furler
    • A 2.5 Spinnaker
      • 135 m2
      • Black
      • Glow tapes in luff seams
      • ATN snuffer sleave

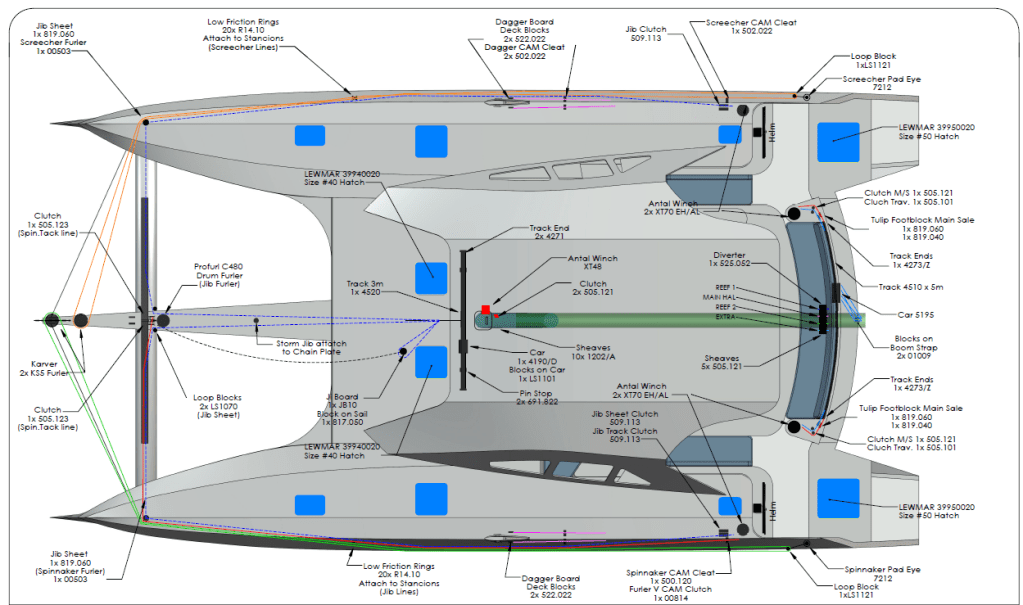

  • Deck hardware and winches – All Harken hardware
    • Harken 42 self tailing winches (6 total)
  • Daggerboards
    • Carbon fiber painted to match hull
  • Rudders
    • Carbon fiber with stainless steel shaft
  • Forward beam
    • Carbon fiber
  • Hull panels
    • Infused epoxy laminates on closed cell core panels
    • Joined with cabosil/cotton flock high density fillers and epoxy/fiberglass tape lines
    • Faired with epoxy 2 part fairing compound
  • Engines
    • 2X Yanmar Engine 29hp w/SD (3YM30AE) Inboard Diesels
    • Yanmar saildrives with gori 3 blade folding props
    • High output alternator (125 amp)
  • Fuel tank – 80 Gal Diesel
  • Fresh Water – 80 Gal
  • Holding Tank – 20 Gal
  • Paint – boat can be painted to suit customer preference (any Awlgrip/Awlcraft product)
  • 1 head
    • Option to add a second under single forward bunk.
  • Standalone shower
  • Cooktop –3 burner gas cooktop, combination burner/oven can be added per customer requirement
  • Electrical –
    • 2 x VICTRON LITHIUM BATTERY 12VDC – 330AH – SMART LIFEPO4 (total of 660 AH @ 12VDC)
    • VICTRON QUATTRO INVERTER/CHARGER 12 VDC – 5000W -DUAL 100AMP 120VAC INPUTS – AUTO TRANSFER SWITCH – 200AMP BATTERY CHARGER –
    • 2 x VICTRON GALVANIC ISOLATOR VDI-32A 32A MAX WATERPROOF
    • VICTRON BLUE SMART IP65 CHARGER 12/5(1) 120V
    • 2 x VICTRON VE.BUS BMS F/VICTRON LIFEPO4 BATTERIES 12-48VDC WORKS W/ALL VE.BUS
    • VICTRON ORION-TR SMART 12/12-30 30A (360W) ISOLATED DC-DC CHARGER OR POWER SUPPLY
    • VICTRON BMV-712 BLACK SMART BATTERY MONITOR
    • VICTRON SMARTSOLAR MPPT CHARGE CONTROLLER – 100V – 50AMP – UL APPROVED
    • VICTRON COLOR CONTROL GX MONITOR – BUTTON CONTROL
    • VICTRON SMART BATTERYPROTECT – 220AMP – 6-35 VDC – BLUETOOTH CAPABLE
    • 6 electric bilge pumps
    • 2 x 12 V, 70 A/h engine starter batteries with bipolar battery isolating switches
    • 1000 W vertical electric windlass
    • Navigation lights (LED), masthead light, mooring light (LED) and decklight.
    • Shore power outlet with differential circuit breaker and galvanic protection
  • Fridge

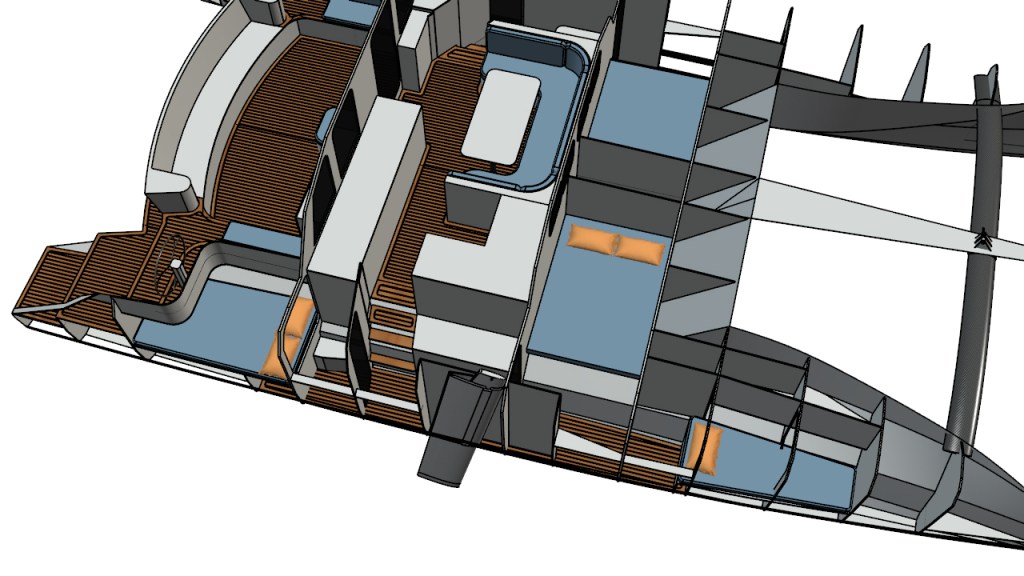

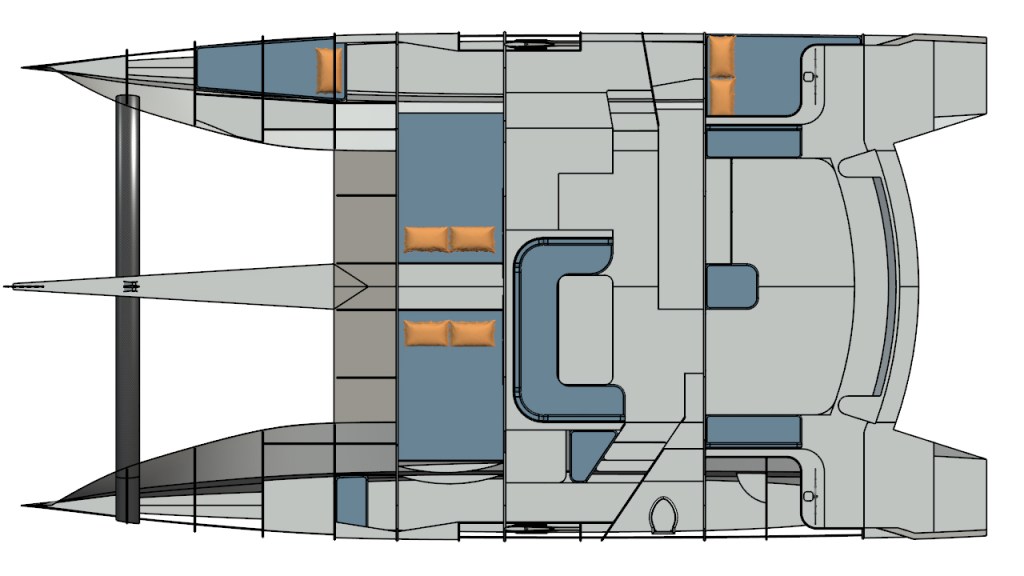

  • 3 double beds, plus single bunk
  • Navigation, Communication and Marine Electronics
    • Dual B&G Zeus S 9 Chartplotter AMER. 9-inch SolarMAX™ high definition display. Built-in GPS, and WIFI, 1 kW echosounder. Unique Sailing Modes and enhanced sailing features, Next-generation C-MAP® DISCOVER™ X chart included.
    • Dual Triton² Speed / Depth /Wireless Wind Instrument pack. Includes 2x Triton² Instrument Display, DST810 Depth/Speed/Temperature transducer, WS320 Wireless Wind Sensor and a NMEA2000 starter kit.
    • The ZG100 GPS Antenna with Integrated Compass sensor providing Heading, Heel and Trim.
    • B&G V60 fixed-mount DSC VHF Radio – Stay safe and connected with this VHF marine radio featuring a sleek design with removable fist mic, Class D DSC functionality, and built-in GPS.  With Masthead antenna.
  • Optional equipment (can be included per customer requirement)
  • Dual carbon fiber helms (clear coat, white or black)
  • Autopilot – B&G
  • AIS – transmit – B&G
  • Radar – HALO20 Radar
  • Tender and outboard (Carbon fiber light weight option available)
    • OC330 TENDER with 15hp 4 stroke Yahama
  • Second head to be built under starboard forward single bunk.
  • Second helm throttle station:
  • AC/Reverse cycle – can be added per customer requirement.
  • Solar –capacity will be tailored to customer requirements
  • Freezer -Engel stand-alone DC/AC fridge or freezer
  • Water maker – boat will be plumbed for a watermaker.
