Arrow 1280S

Currently under construction estimated completion date October 2025.

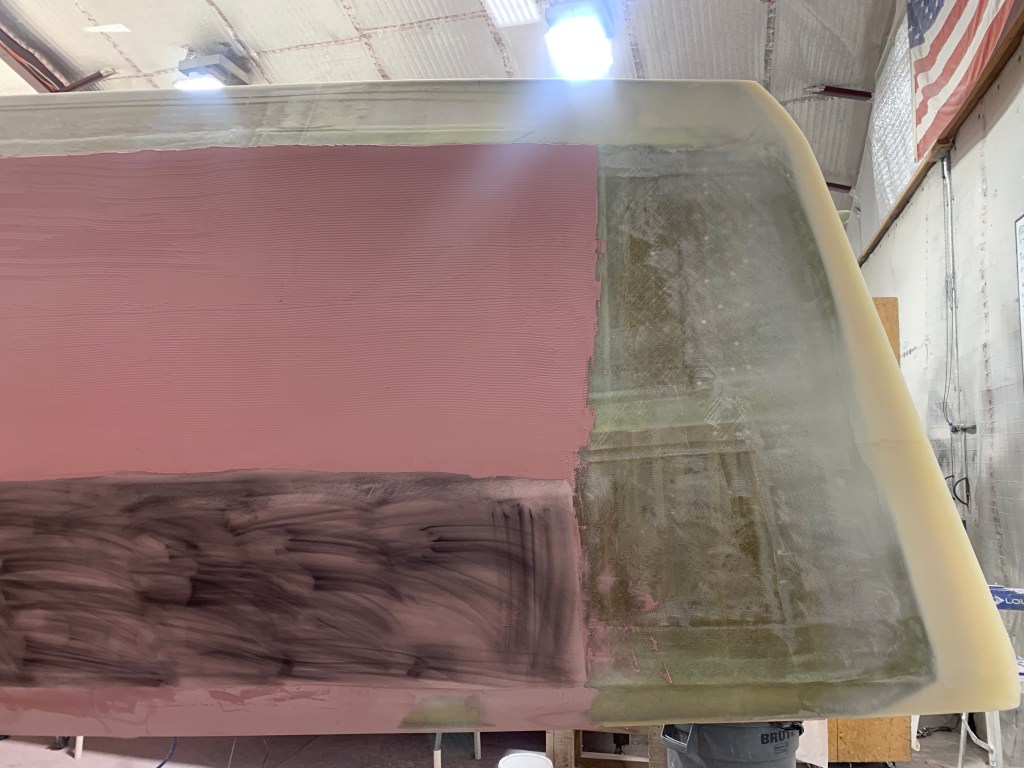

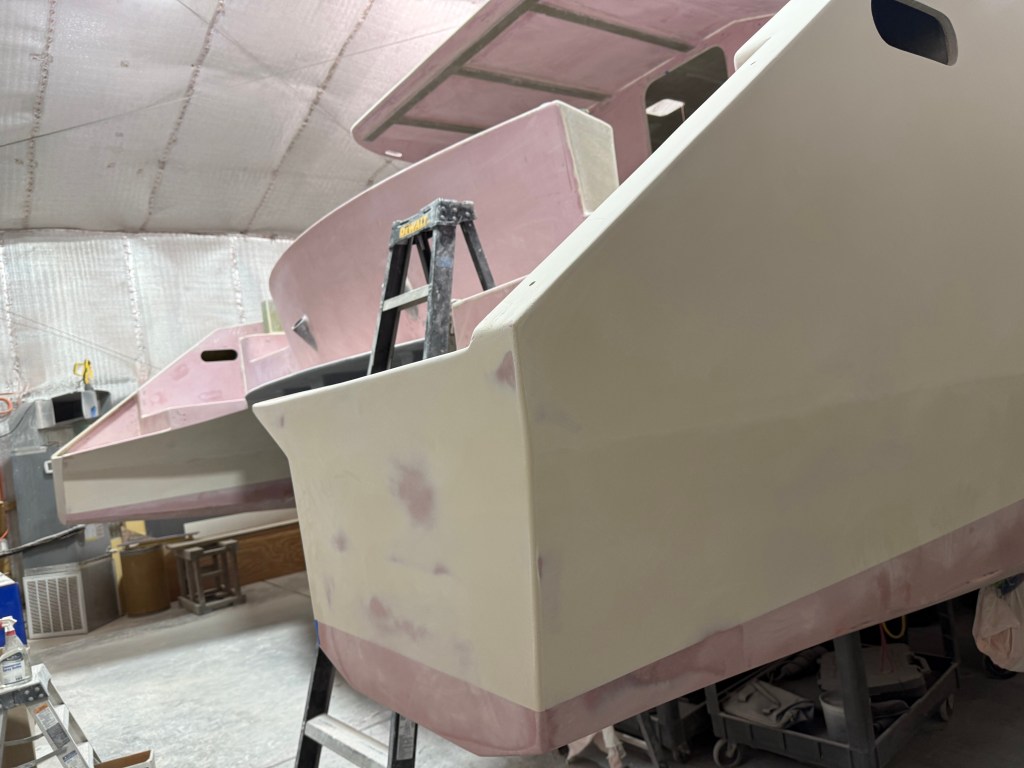

High build and more fairing

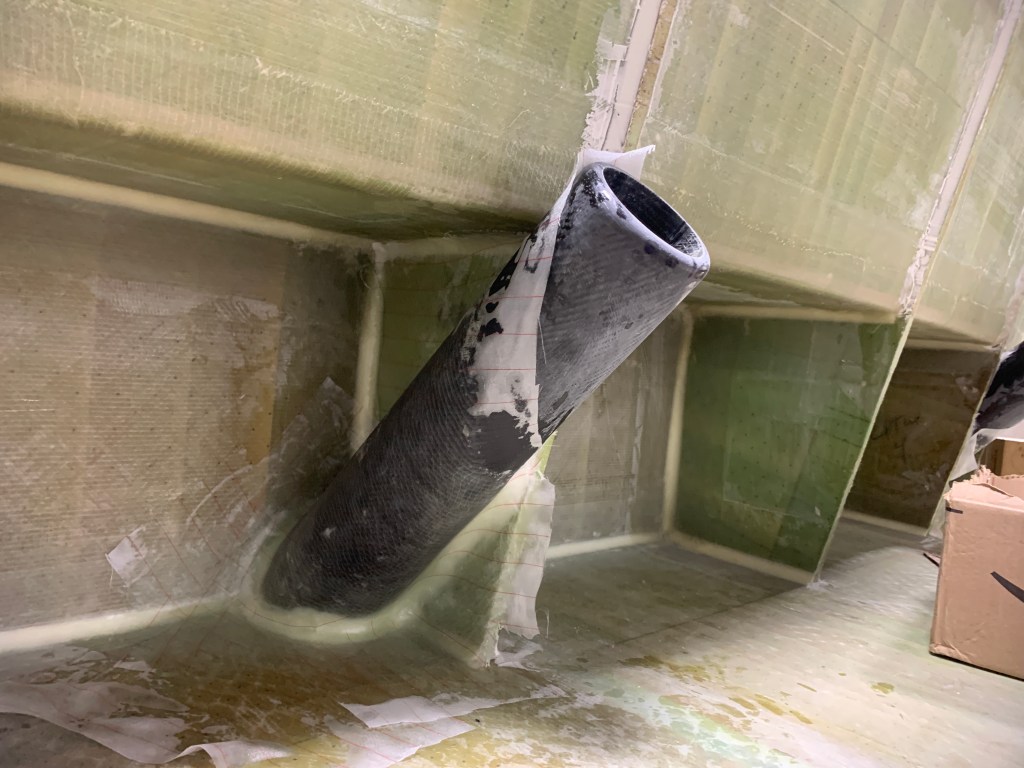

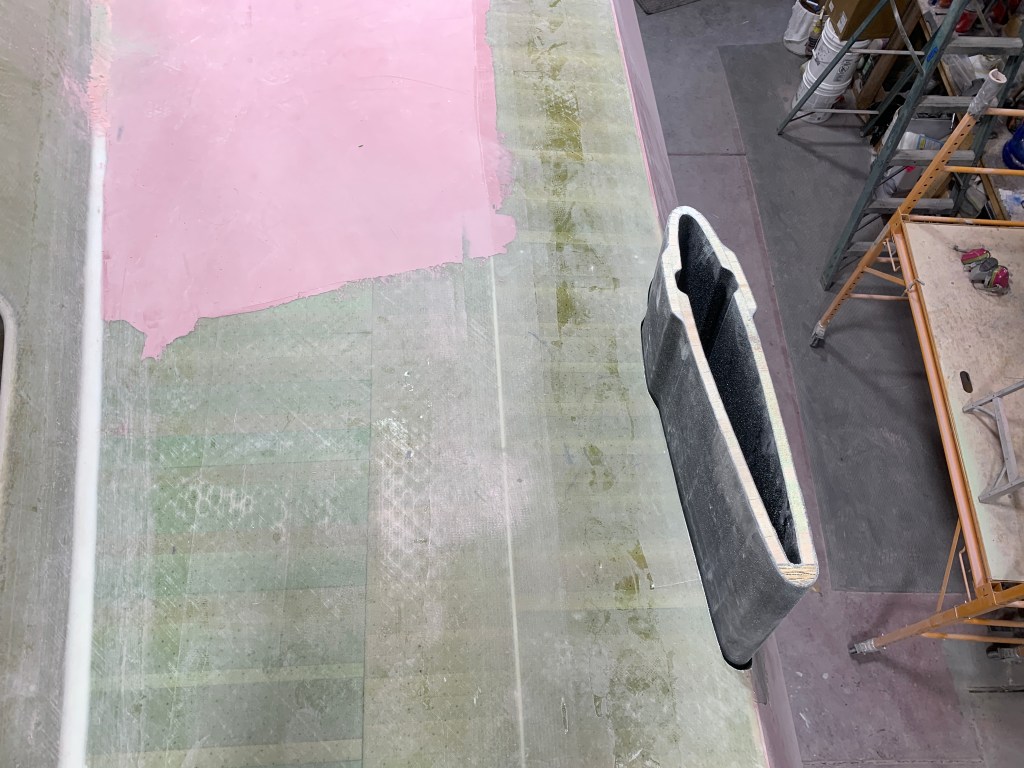

DAggerboard cases

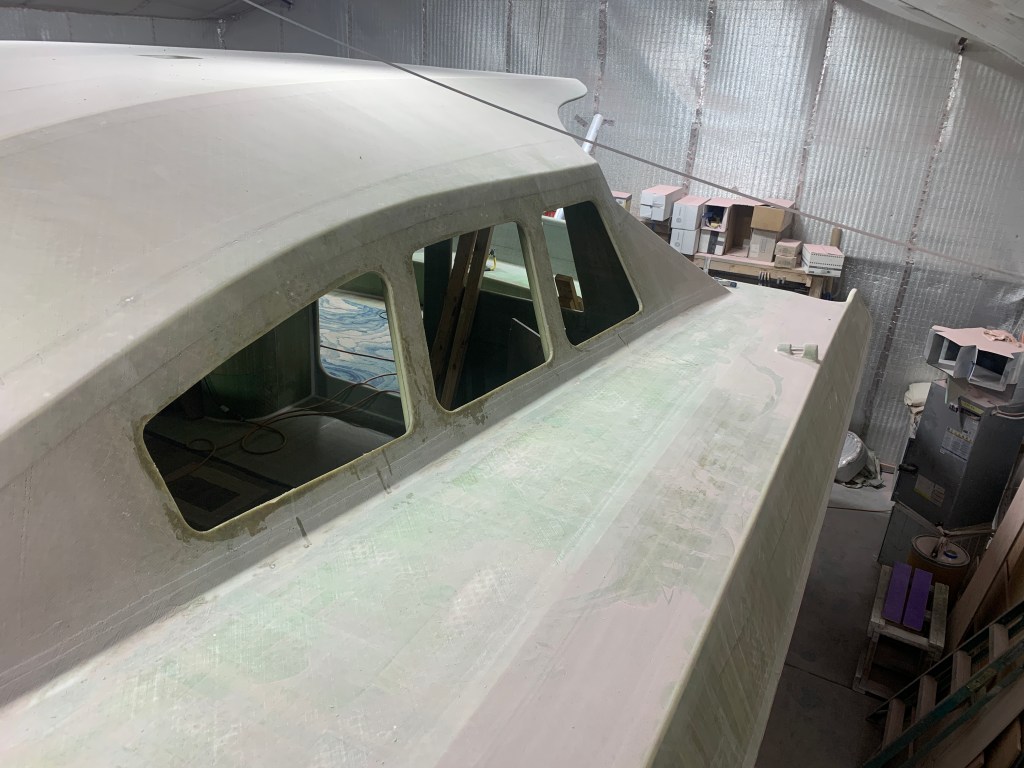

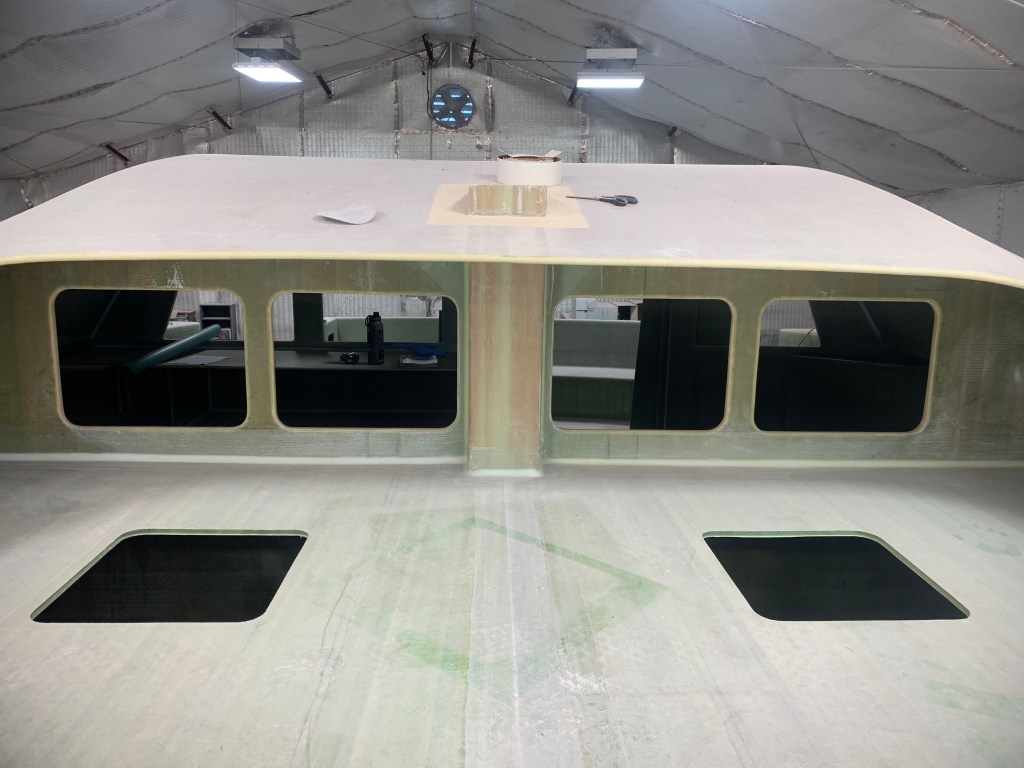

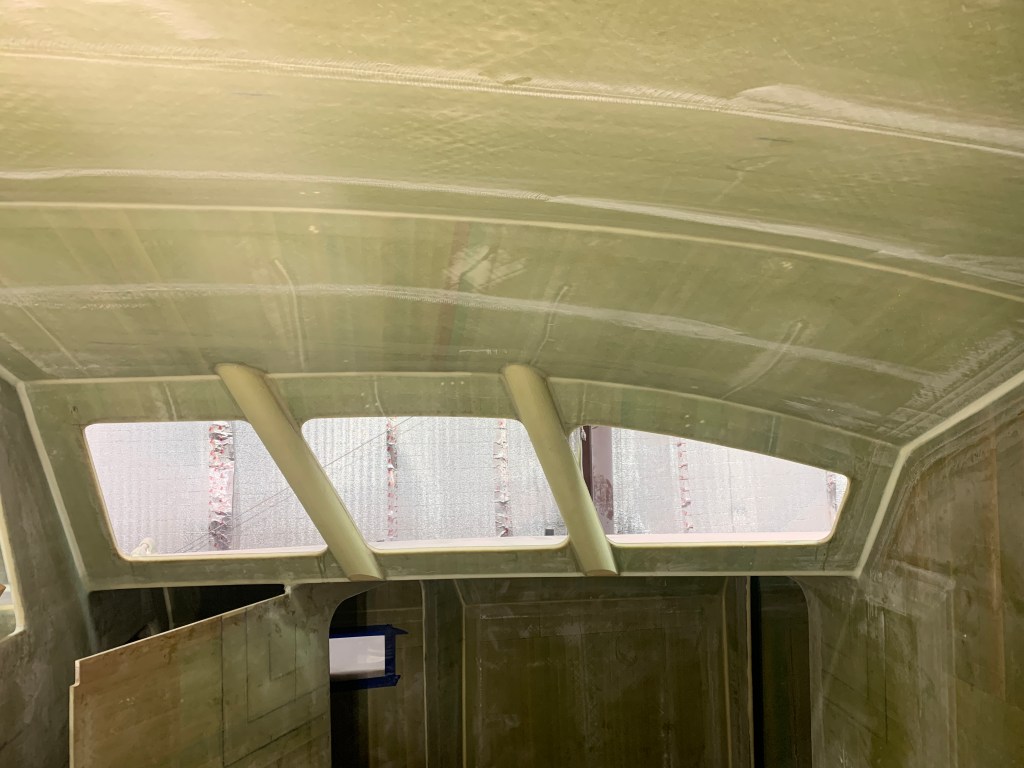

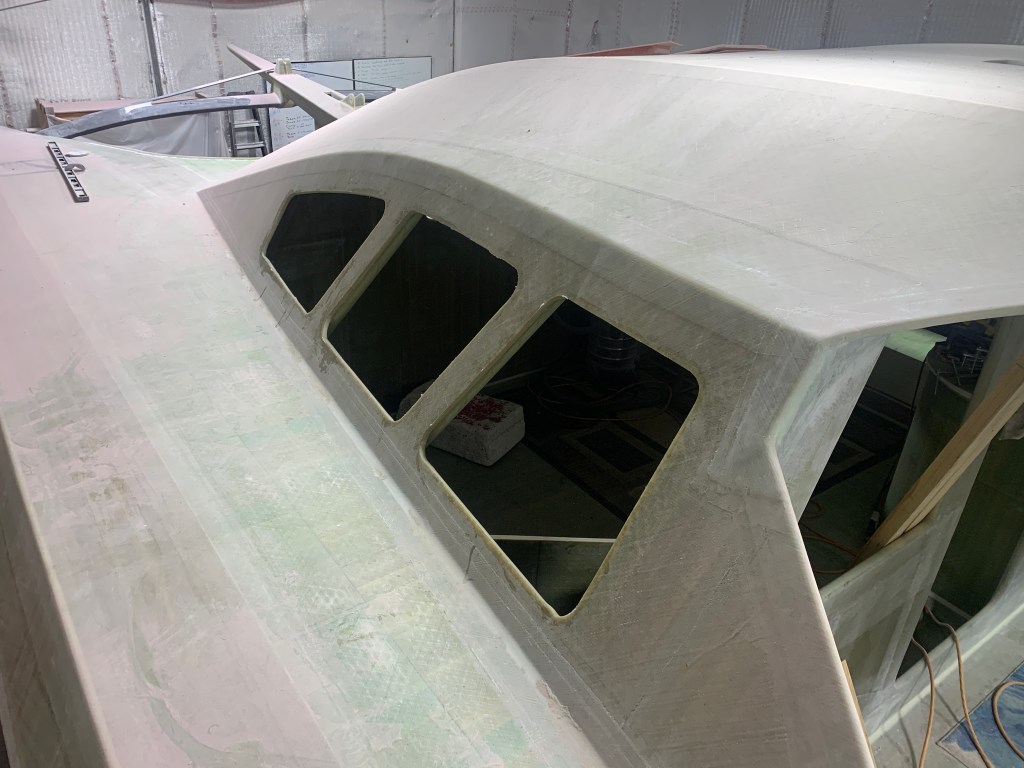

SAlon windows and Helms

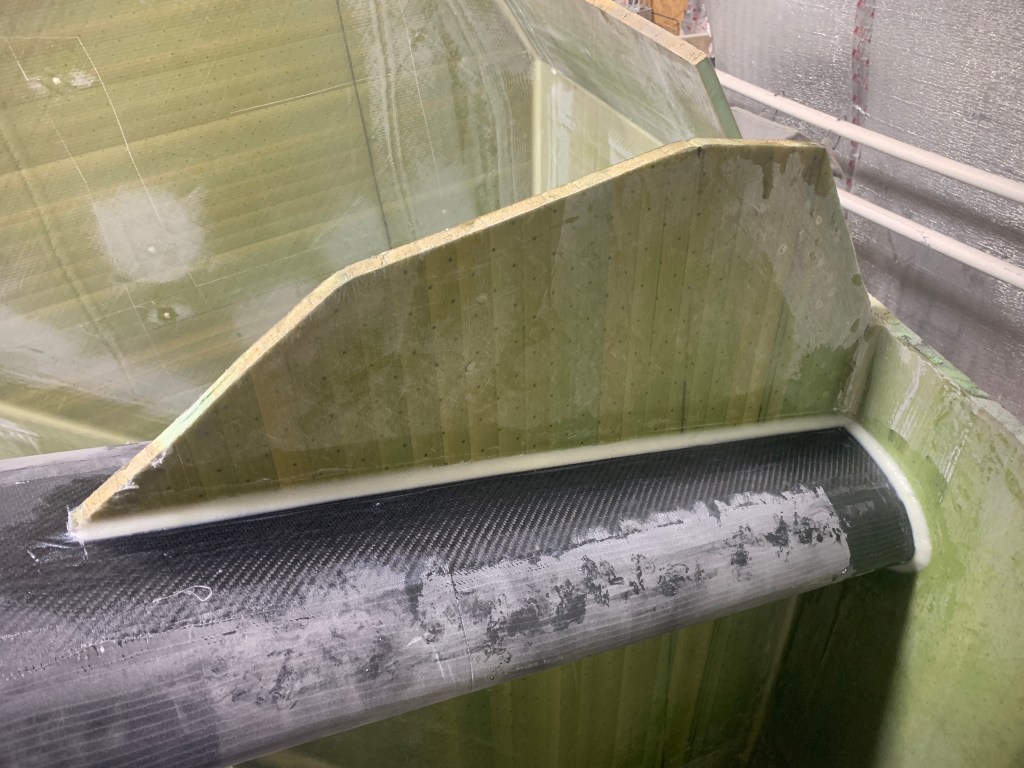

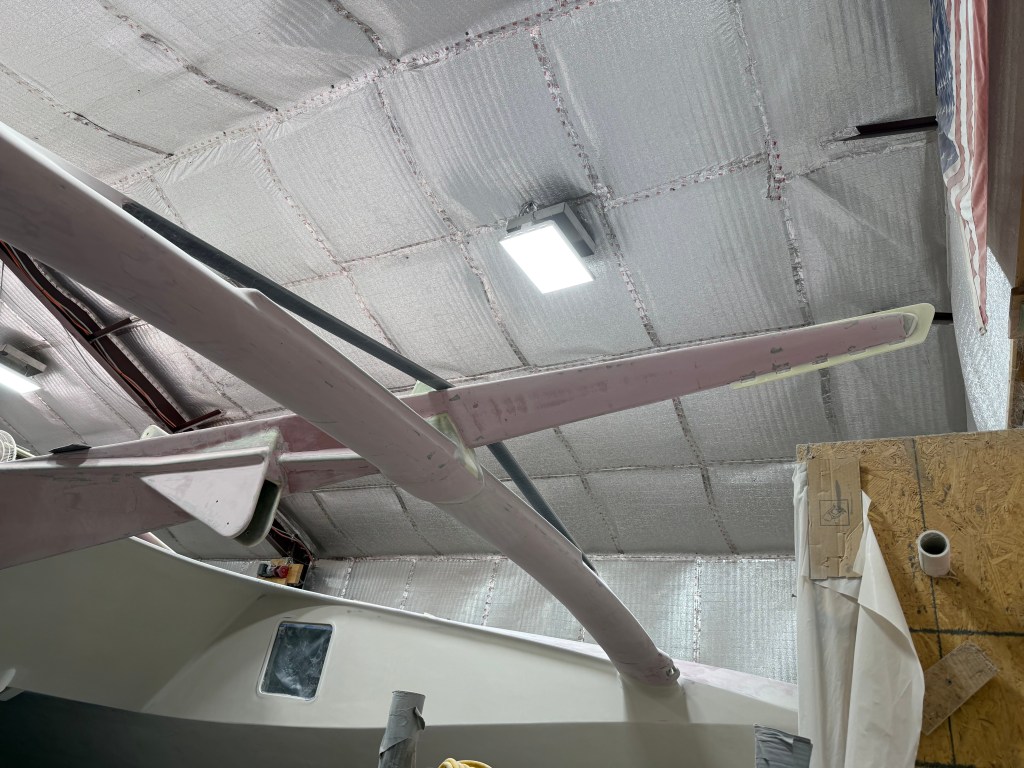

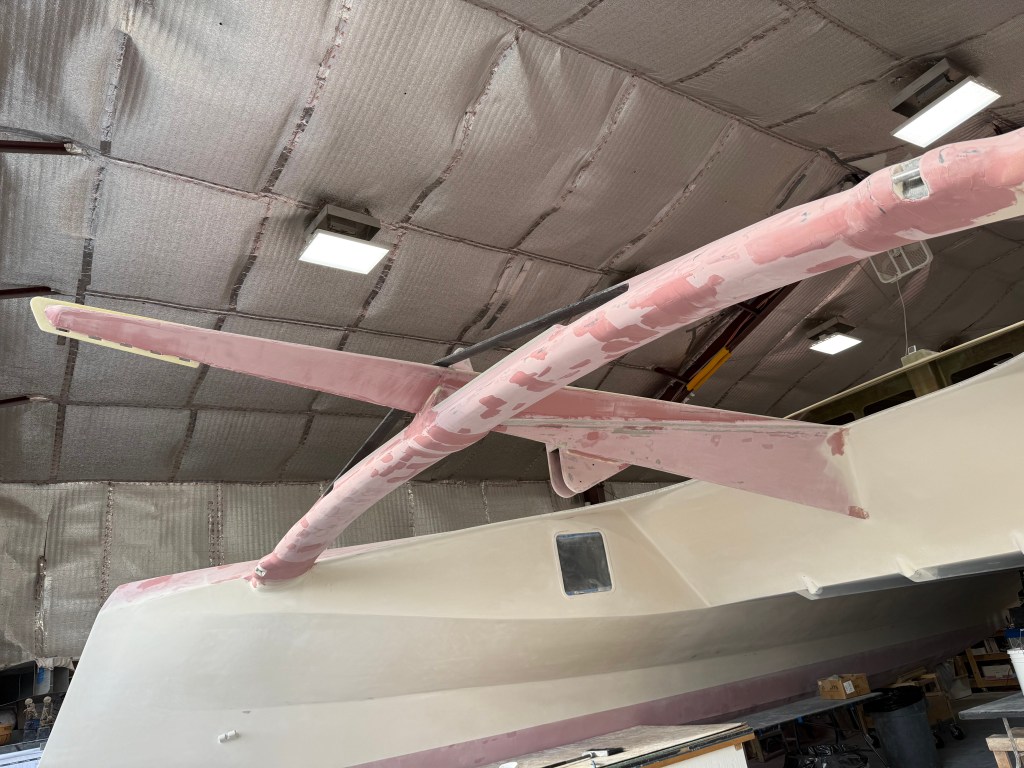

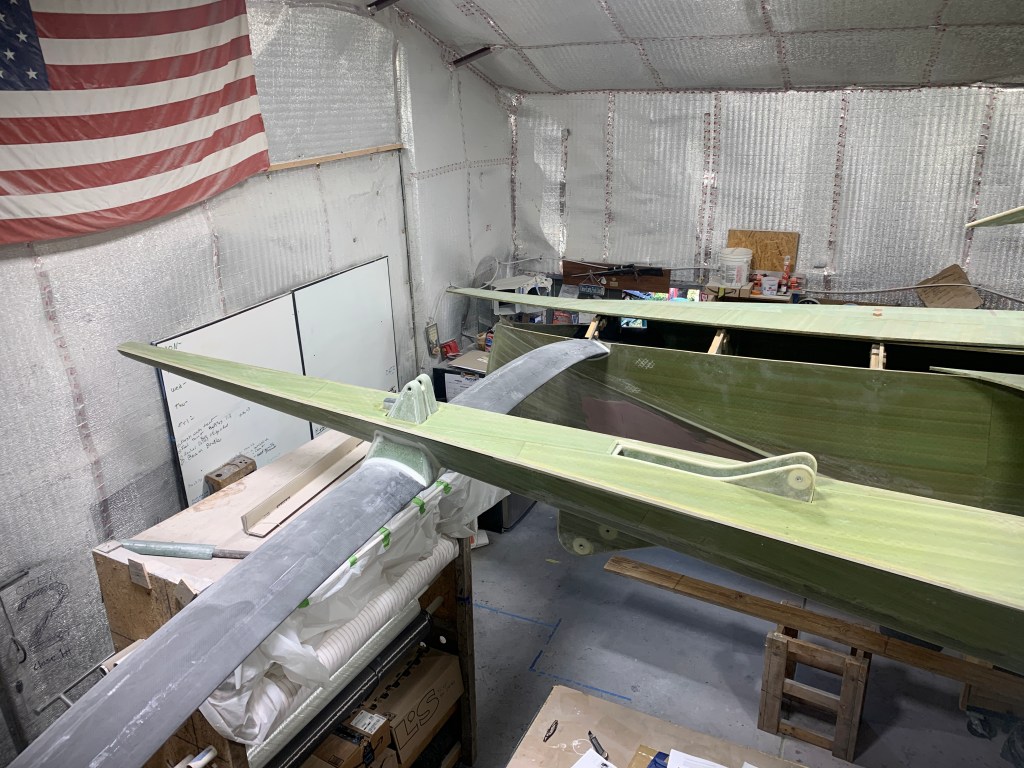

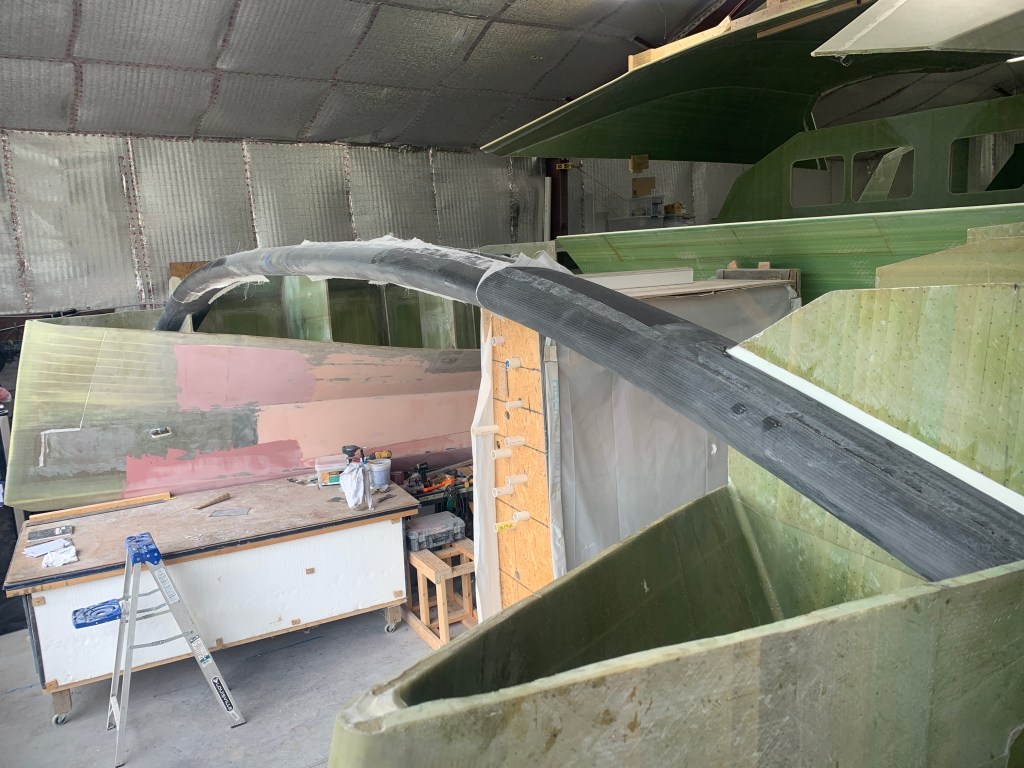

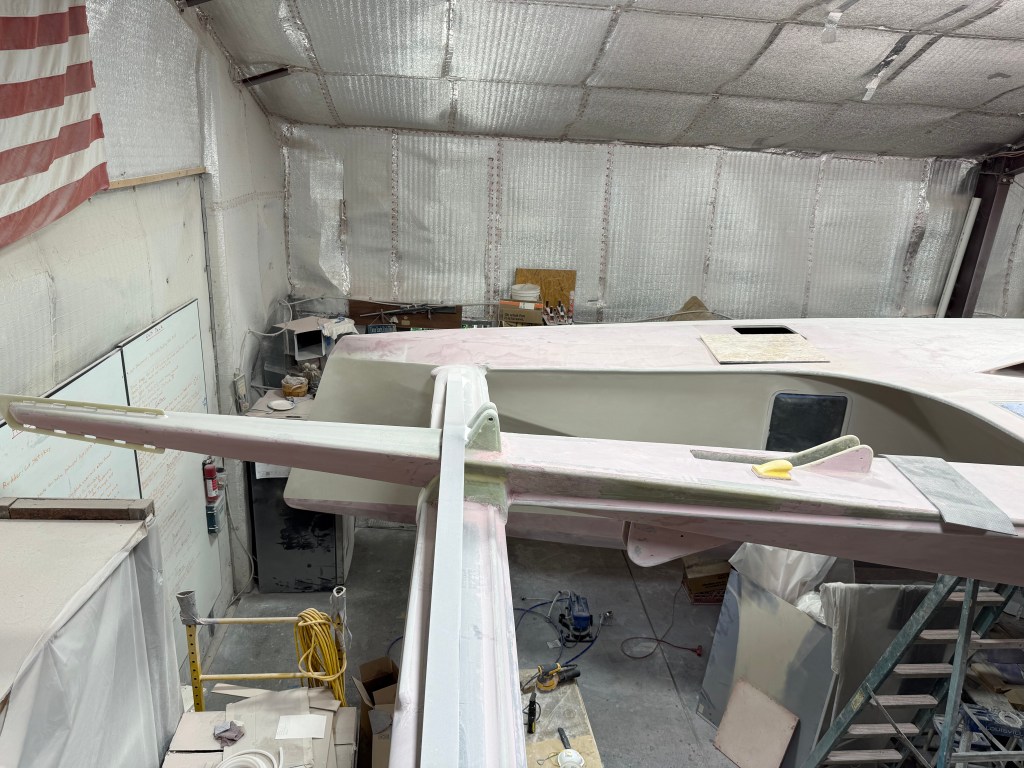

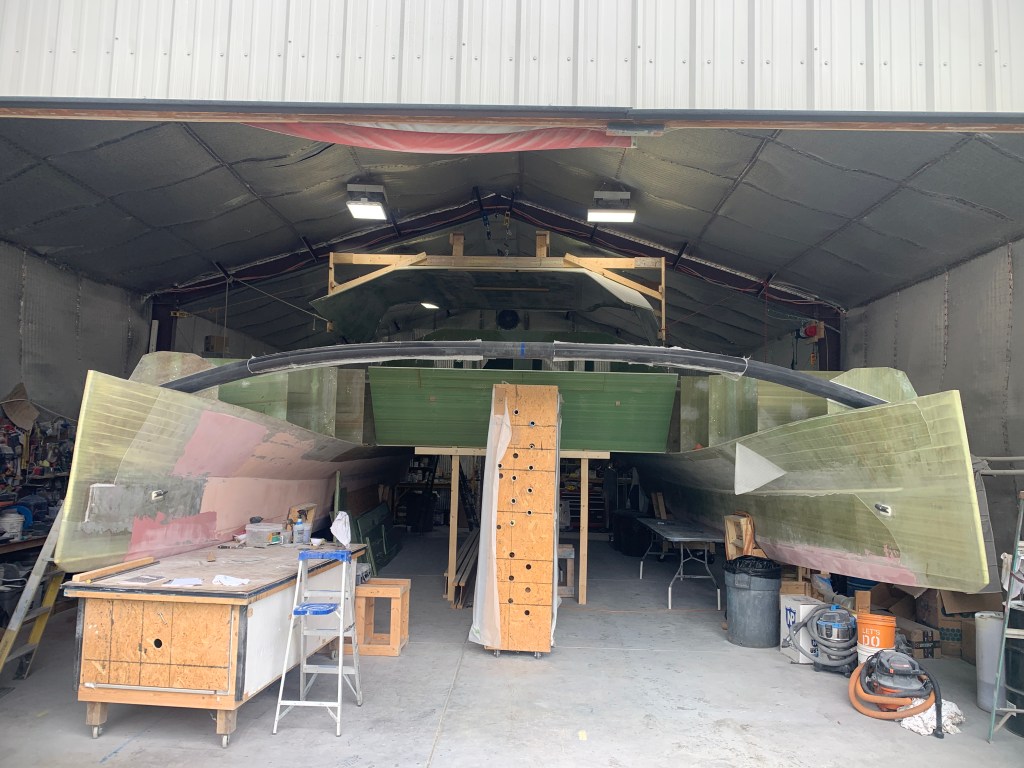

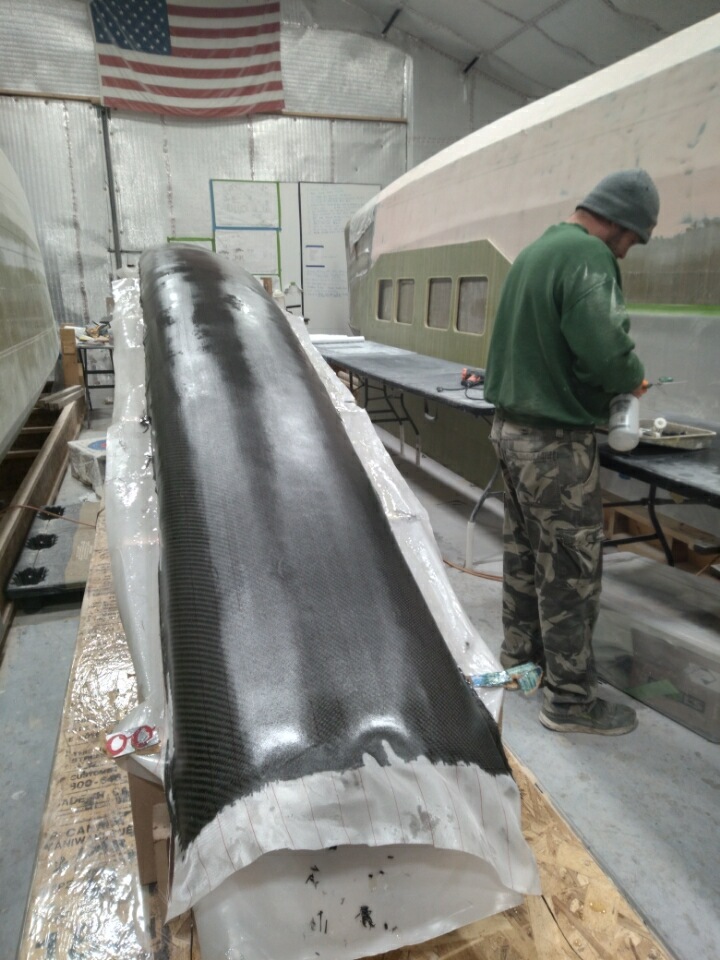

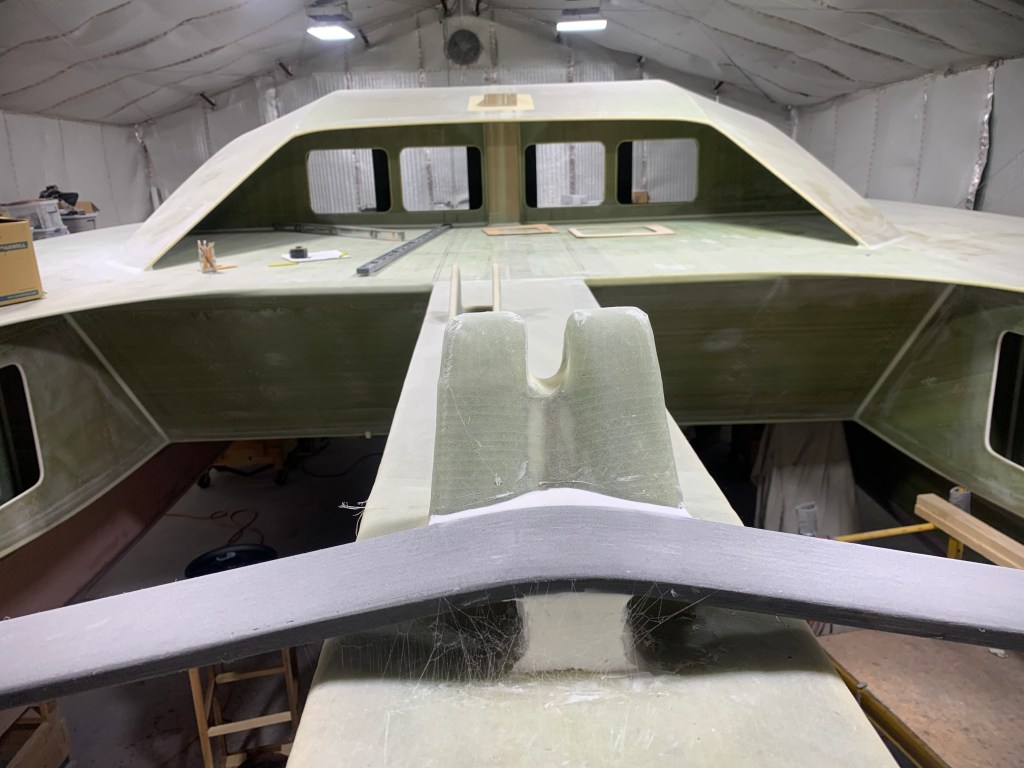

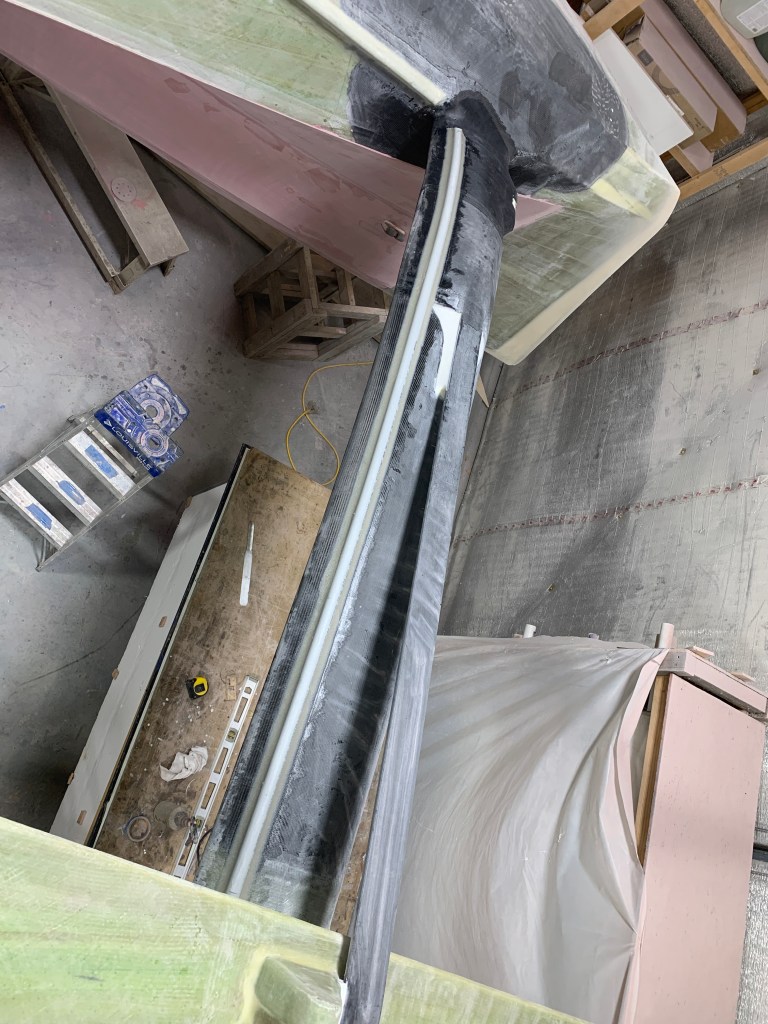

Carbon Beam and Longeron

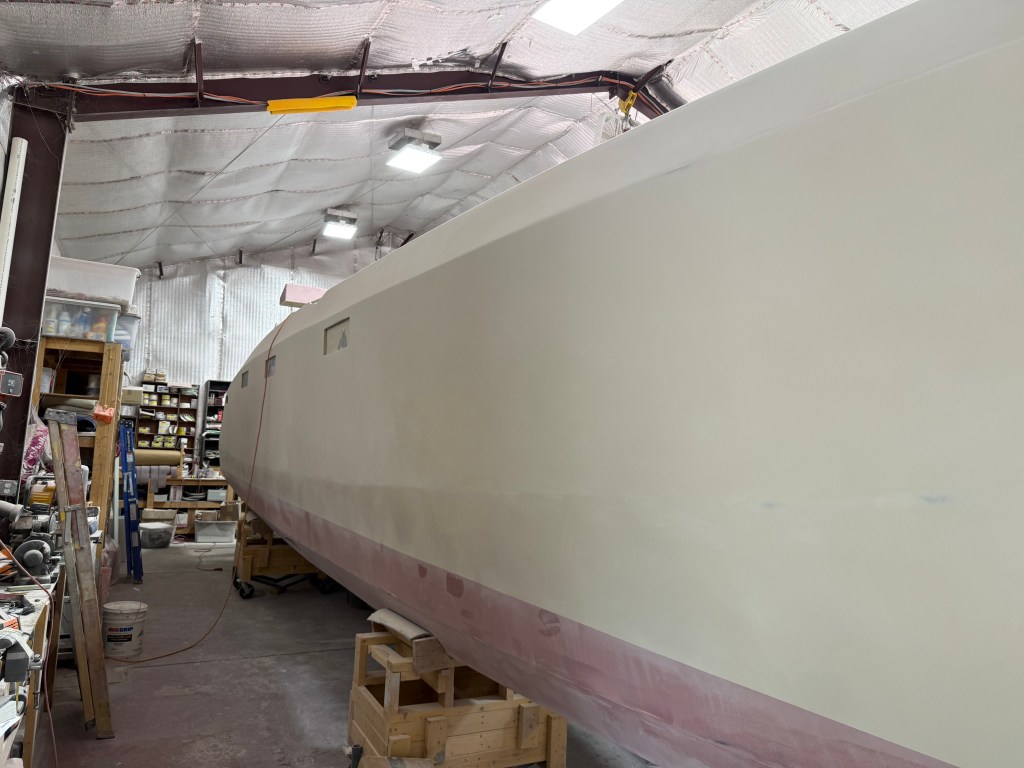

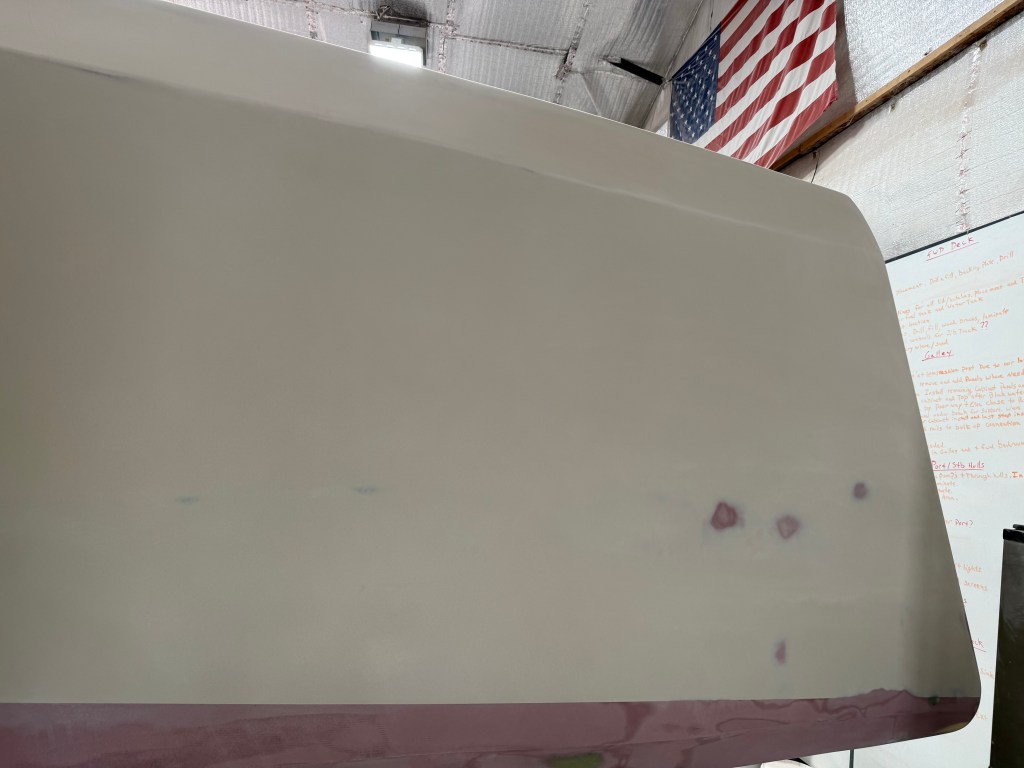

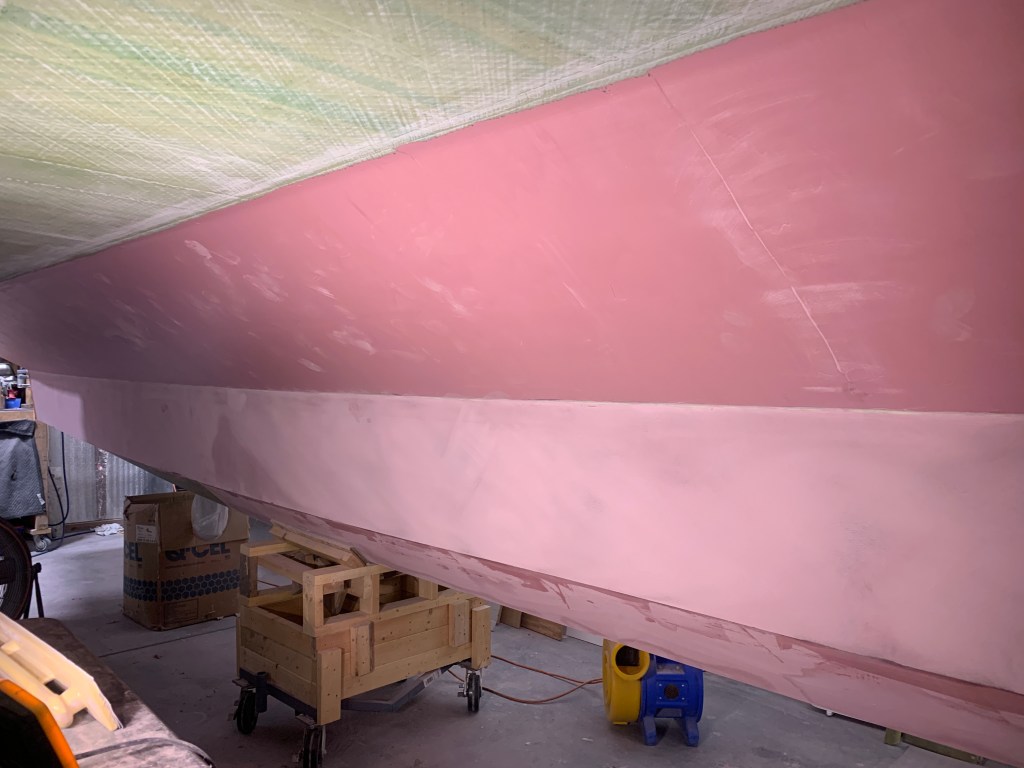

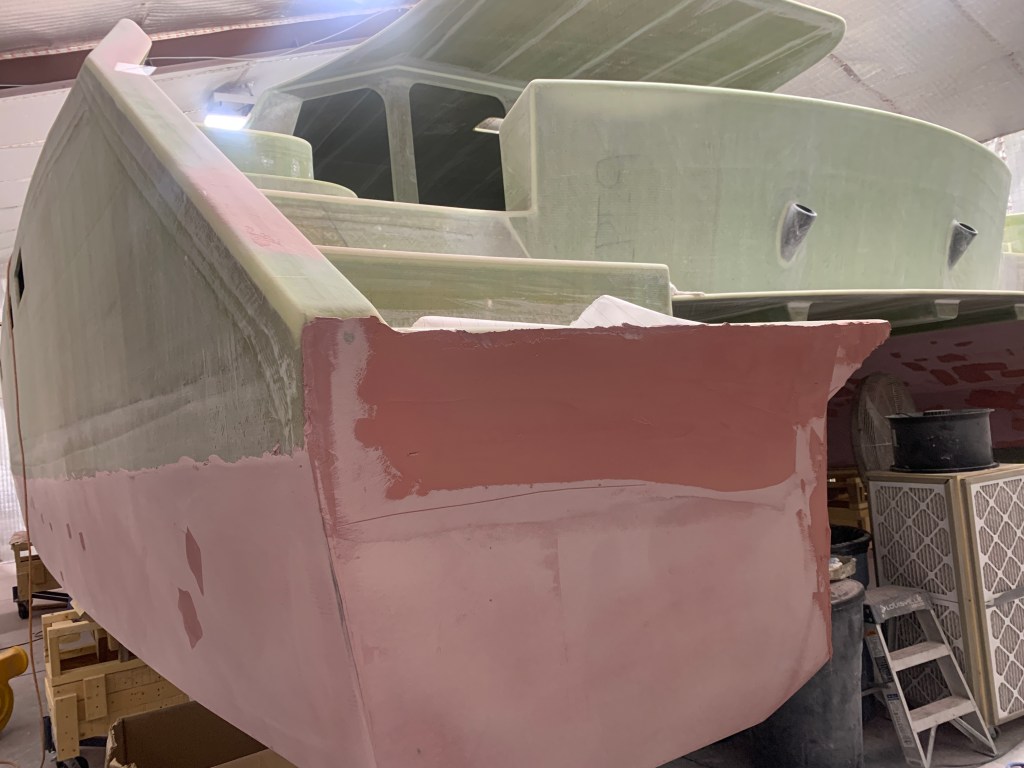

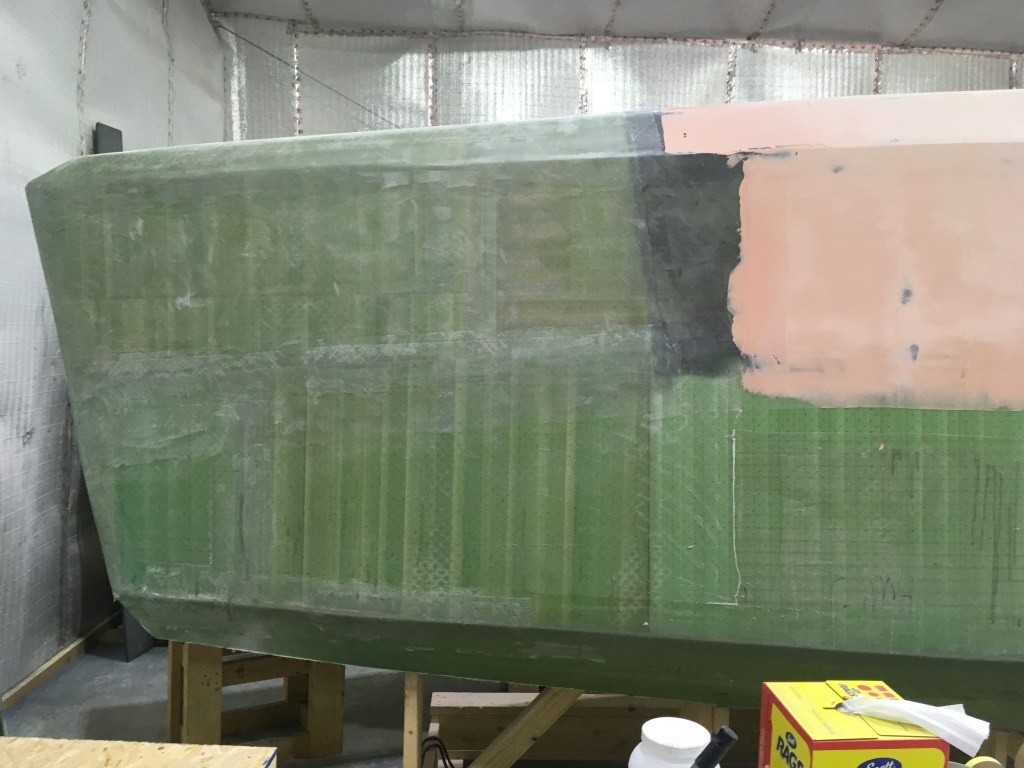

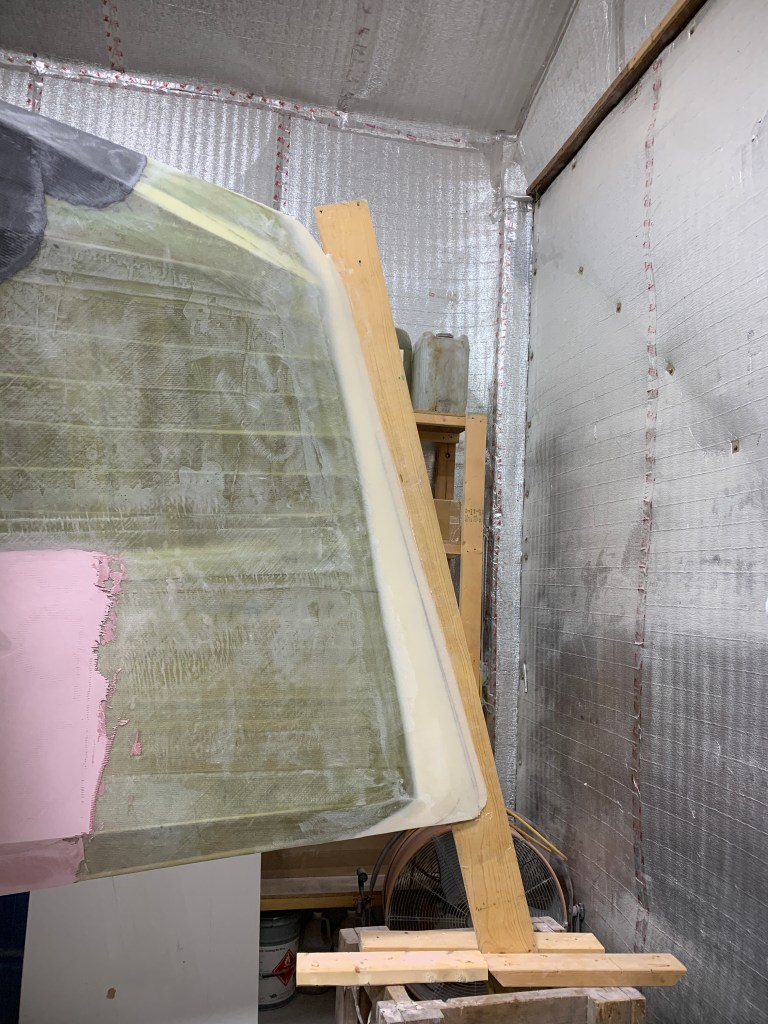

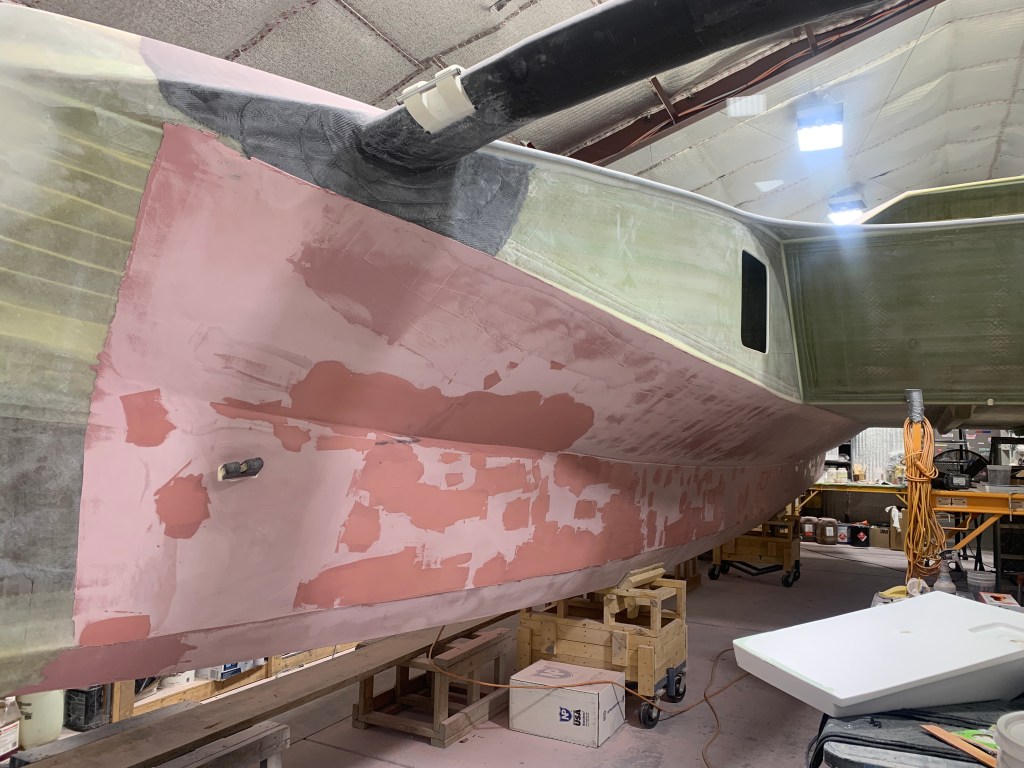

Fairing the Boat

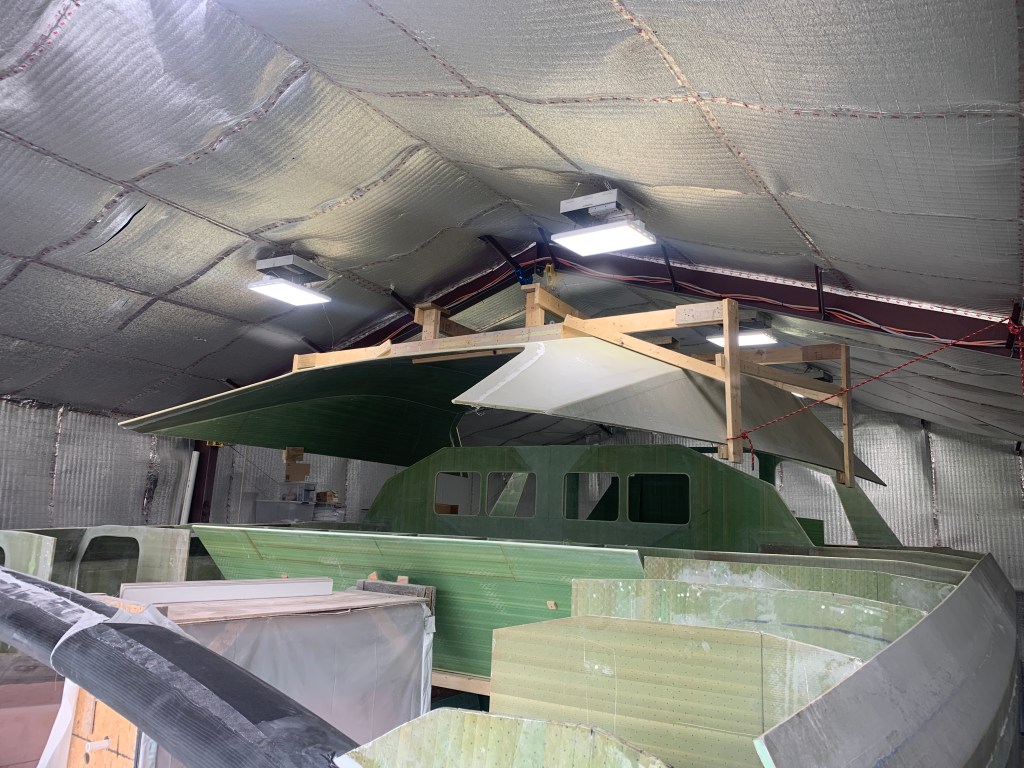

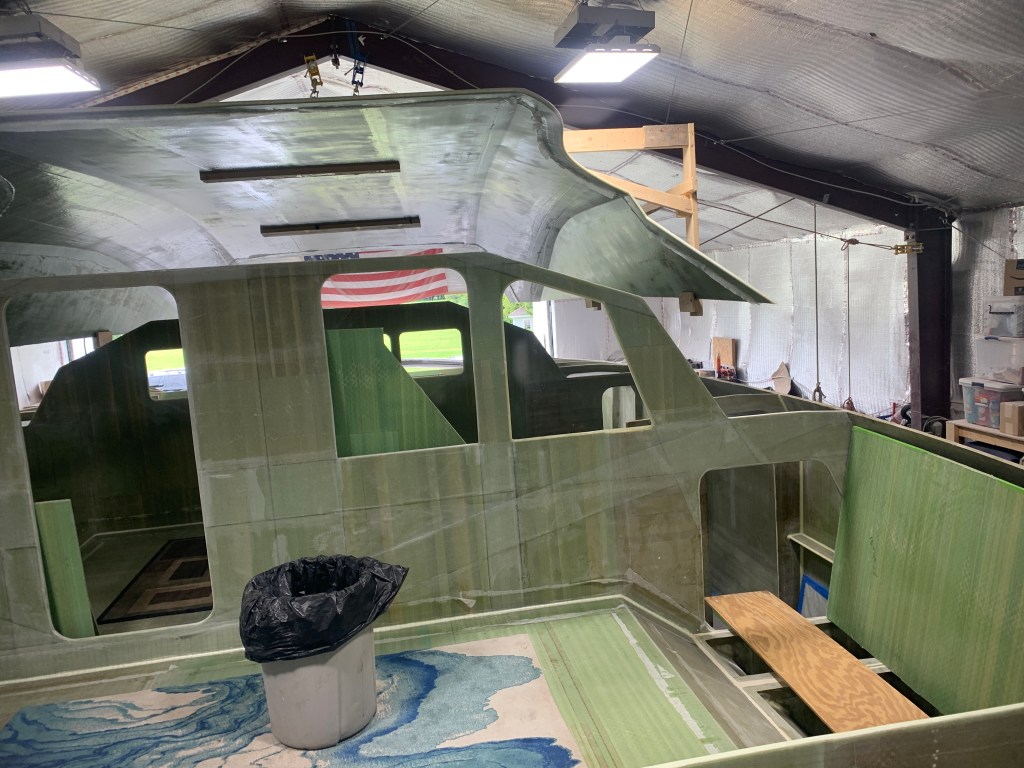

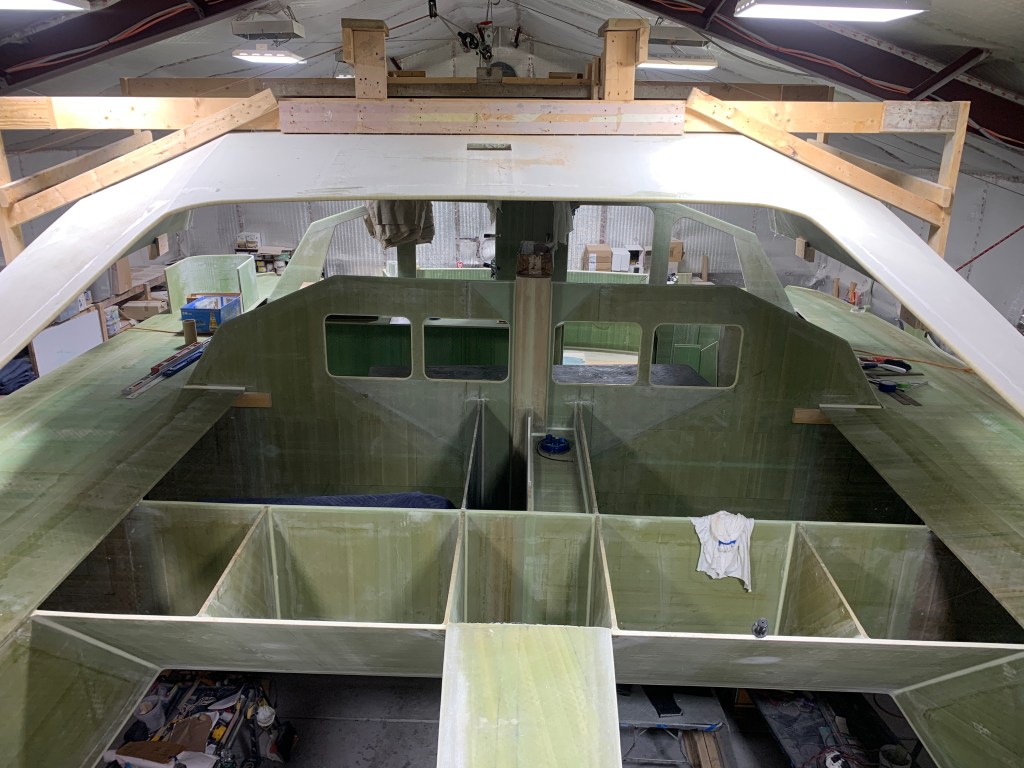

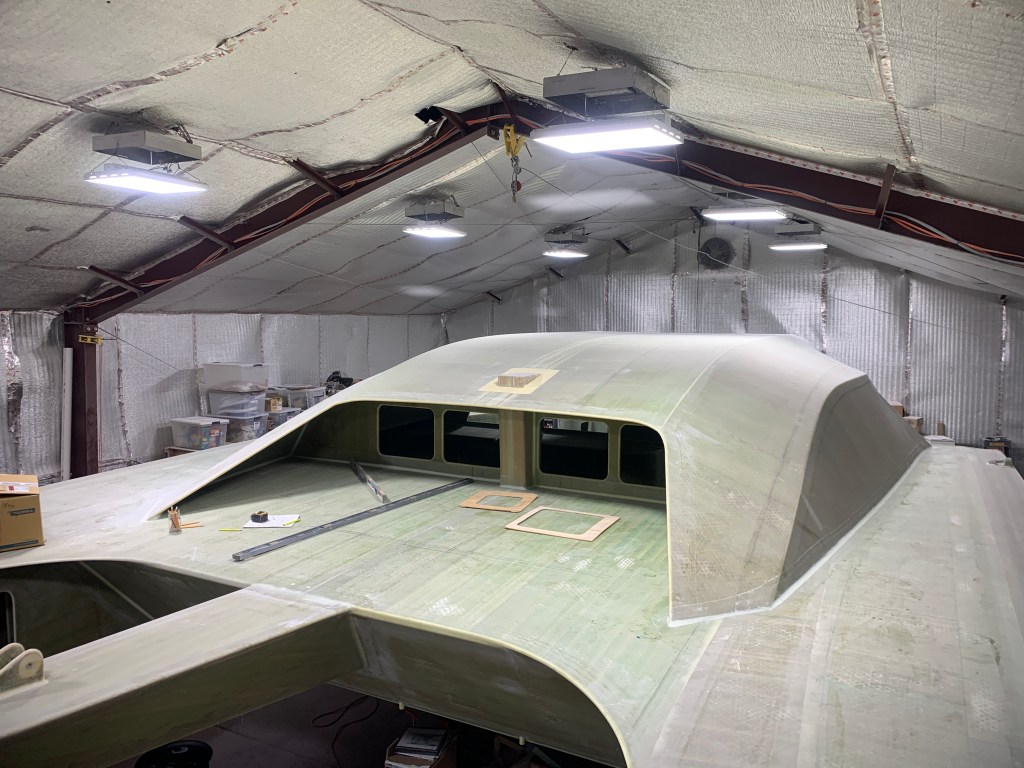

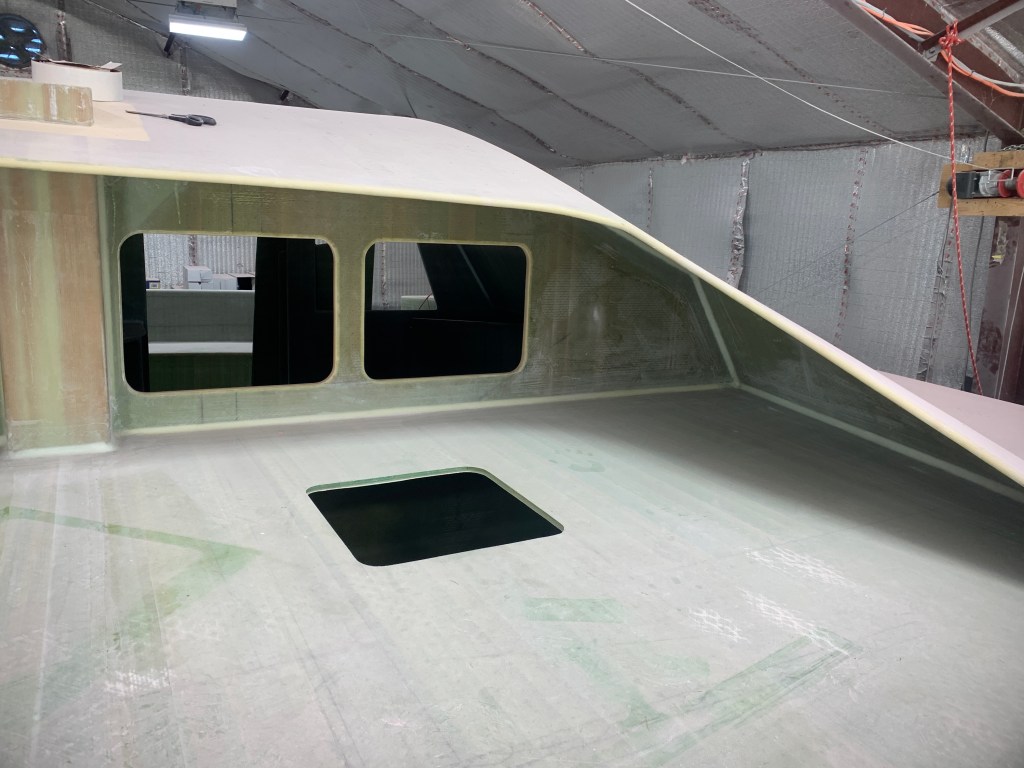

Coach roof and Deck install

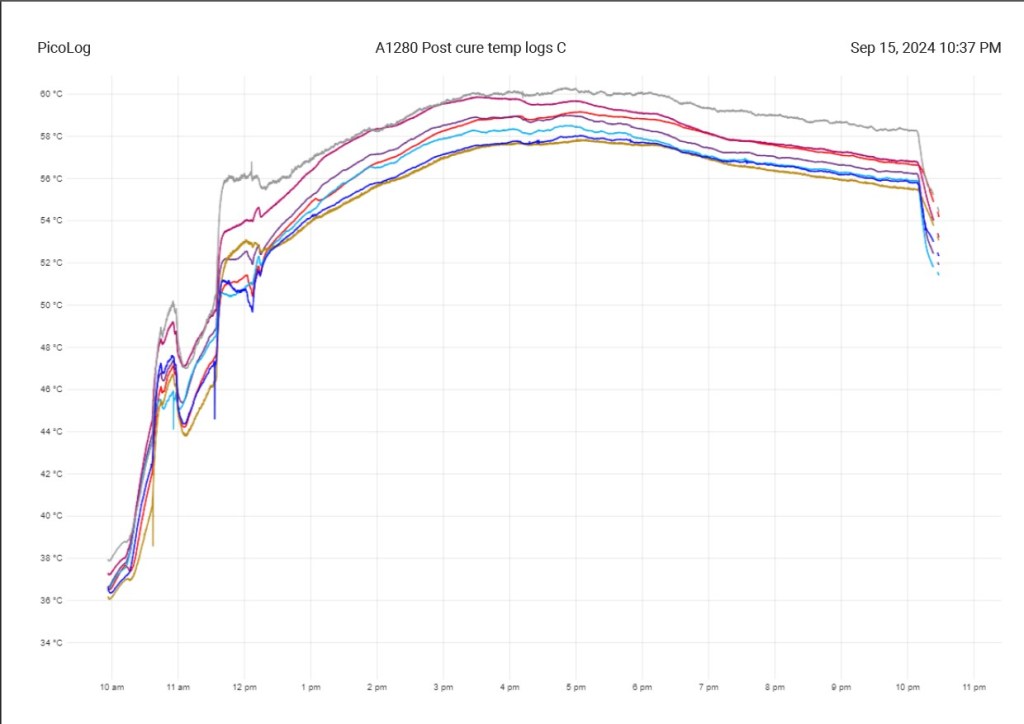

Post Cure

We post cure the Yacht to ensure the peak performance for our resin. Post-curing enhances physical strength and thermal properties beyond what’s achievable with room-temperature cures alone. Our post cure was a slow increase in heat over 24 hour to 104F/40C. Then we ramped up to 10 140F/60C for 10 hours. By performing this we ensure the boat will never see blead through even with dark color paint.

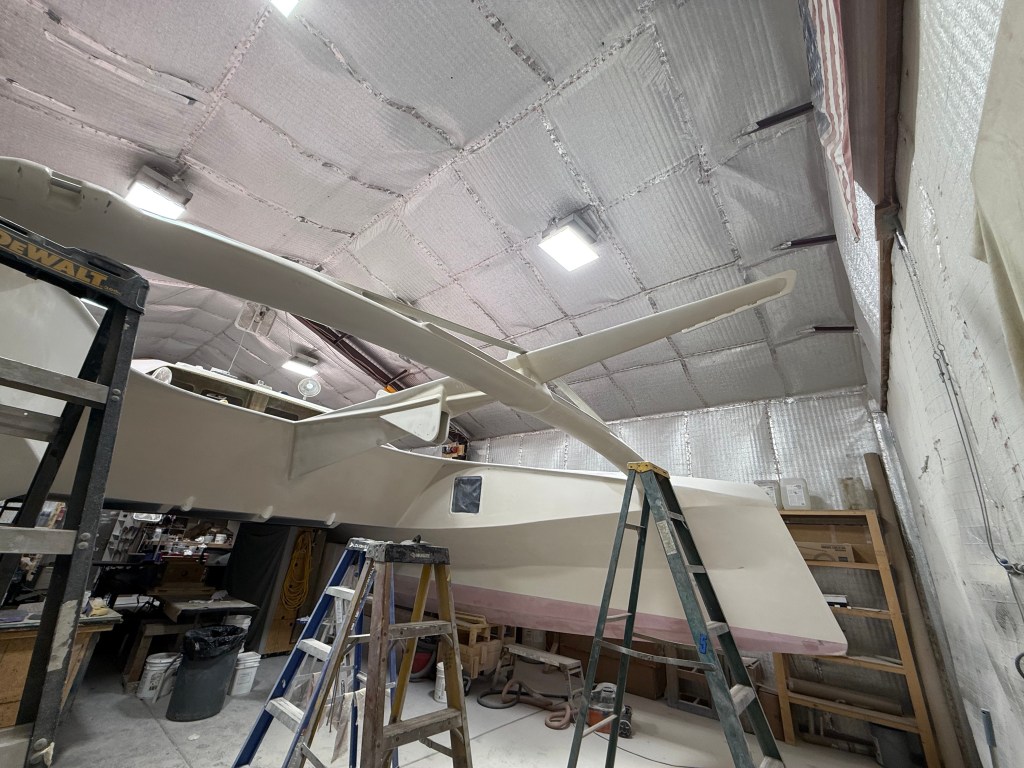

Davits

Cockpit and prodder

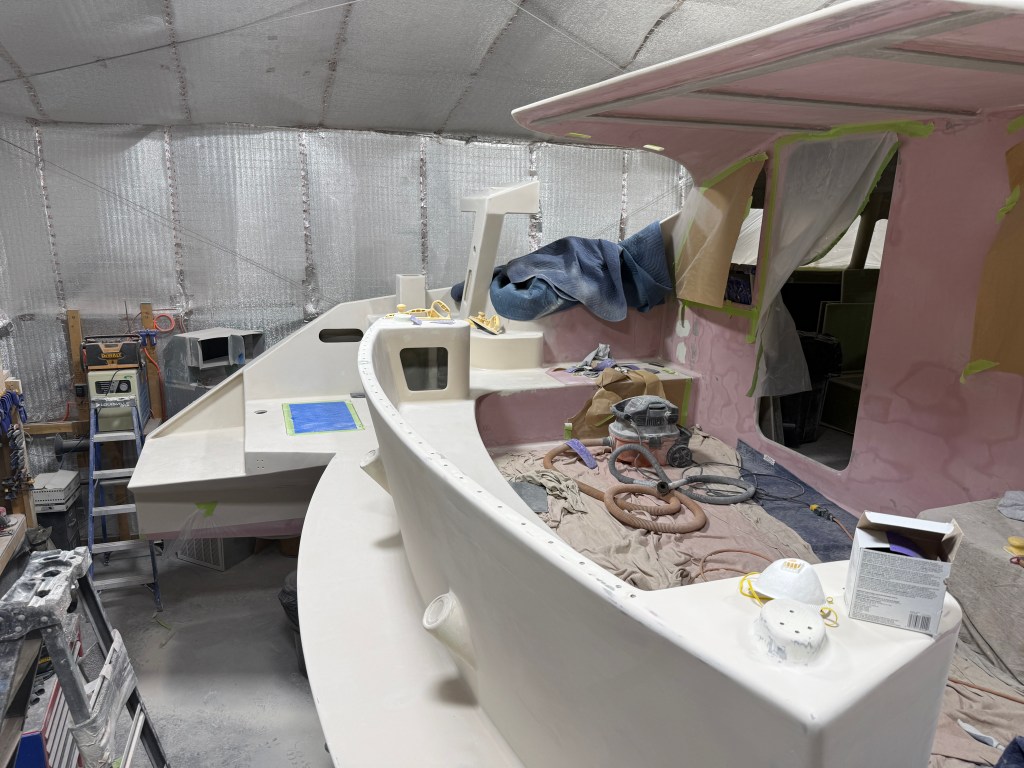

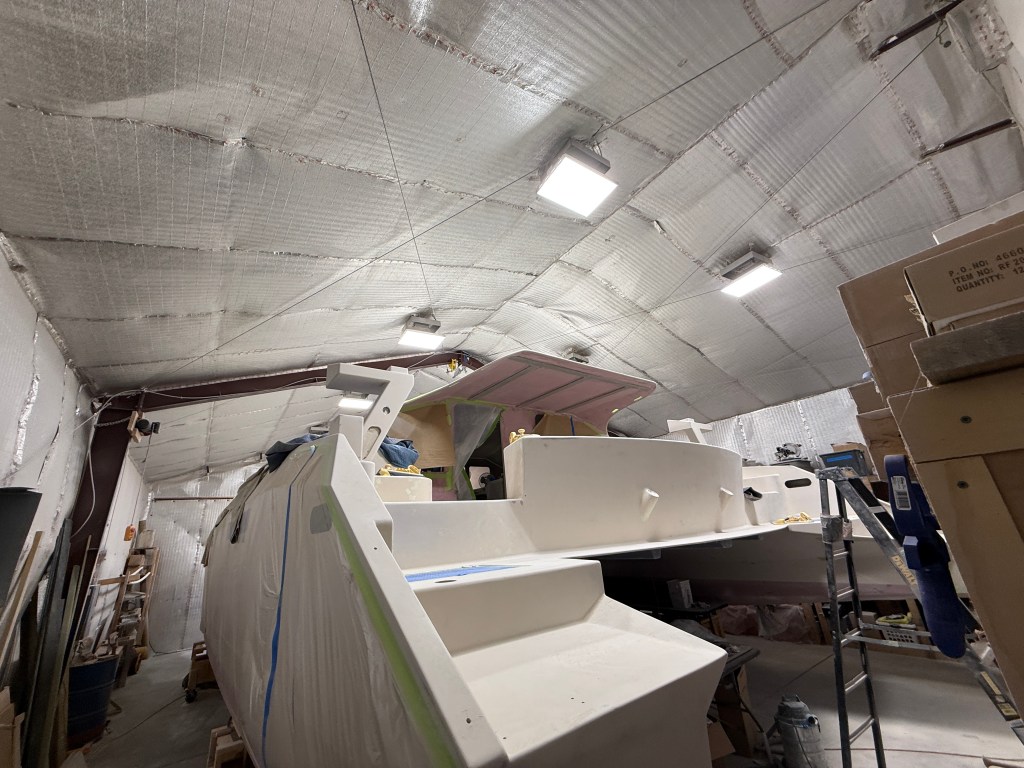

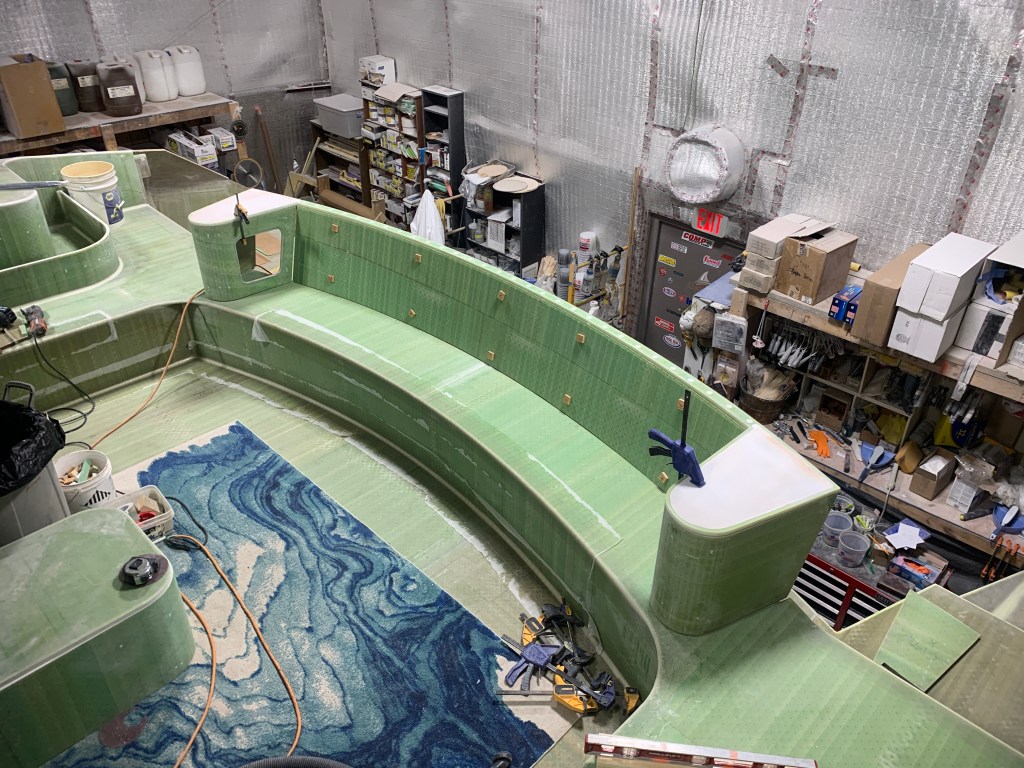

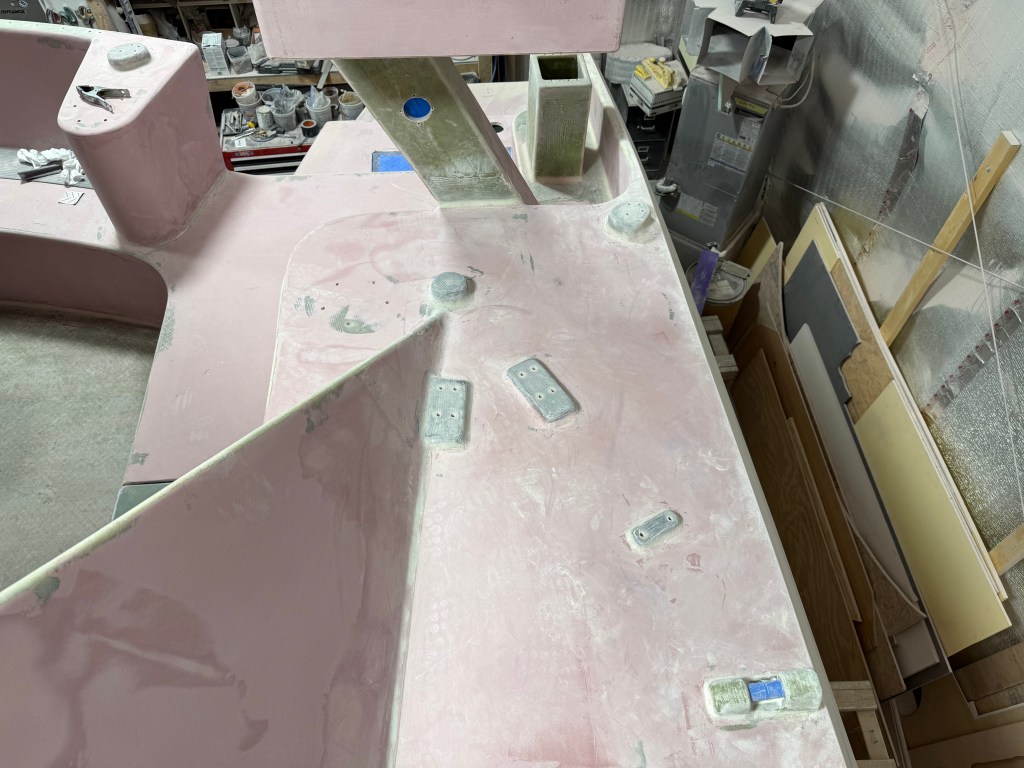

Cockpit and traveler base installed
Anchor roller installed. Prodder ready for tabbing

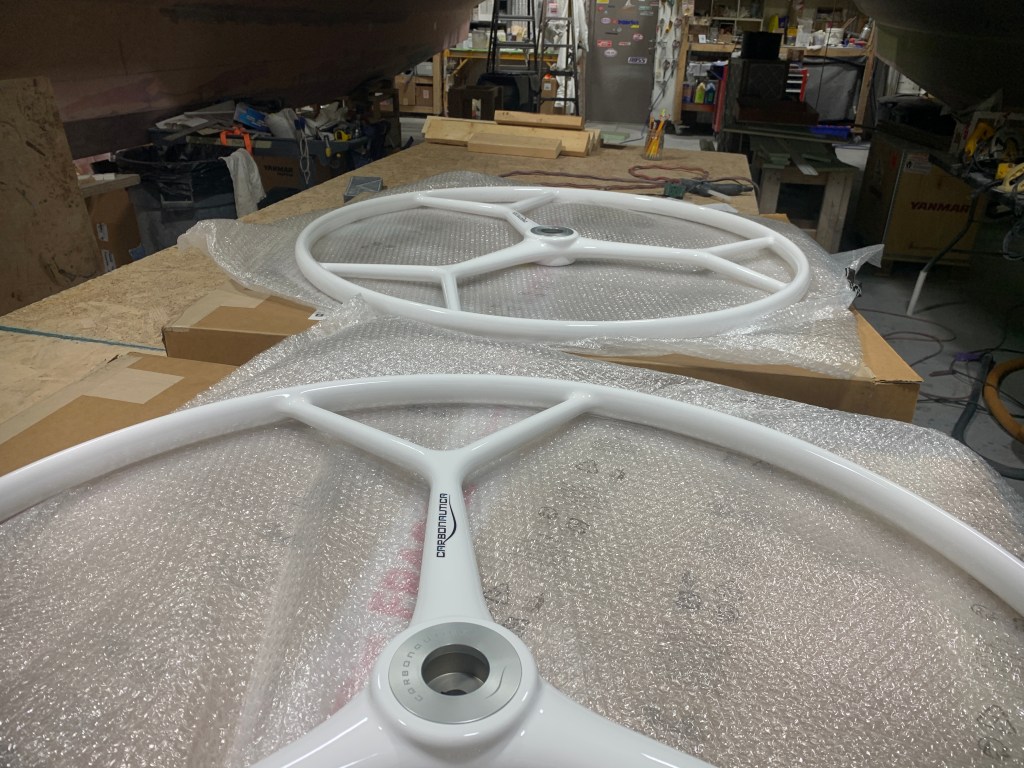

Two new GRP Carbonautica wheels have arrived

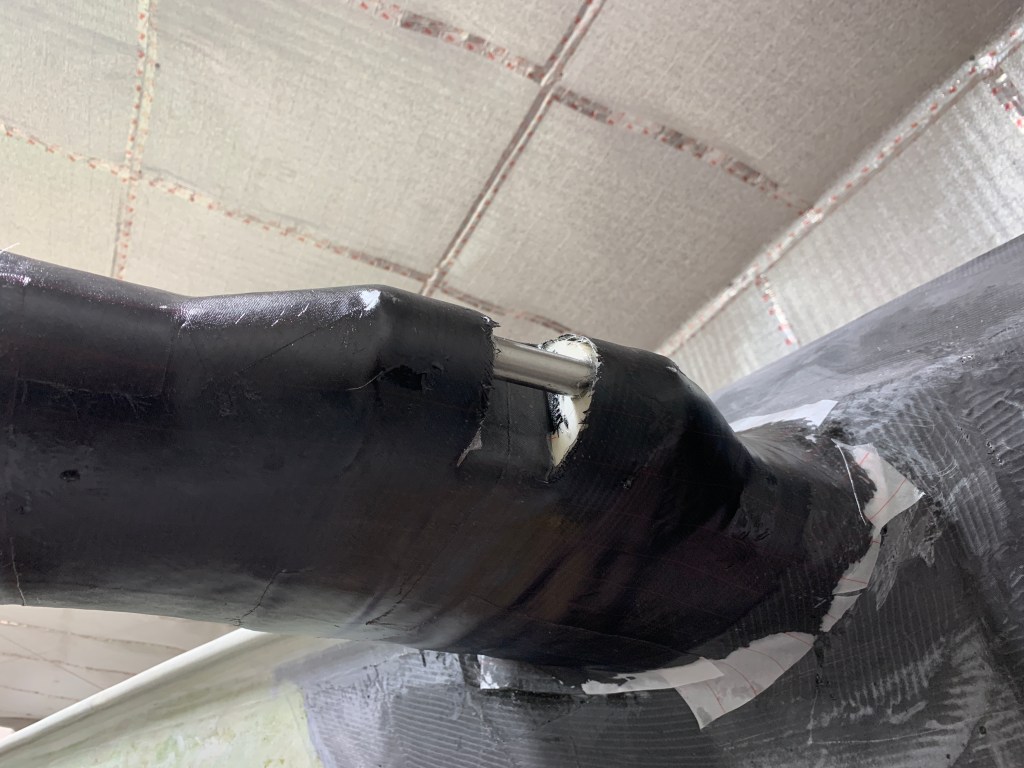

Carbon beam tabbing and anchor roller

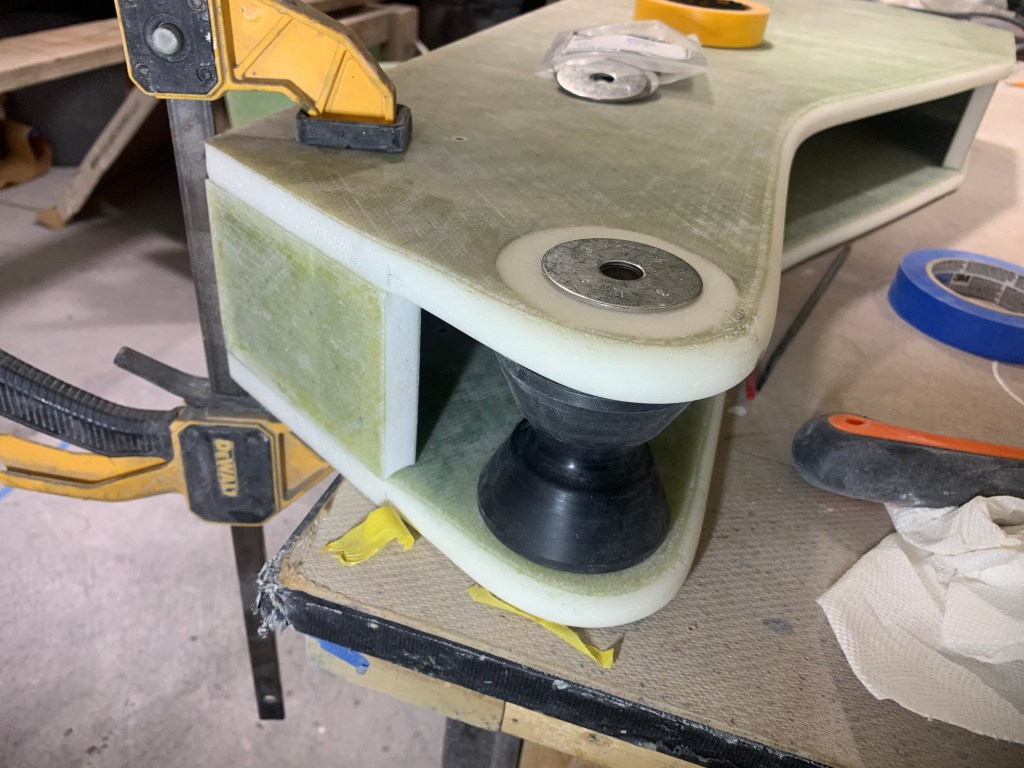

Anchor roller getting rough fit

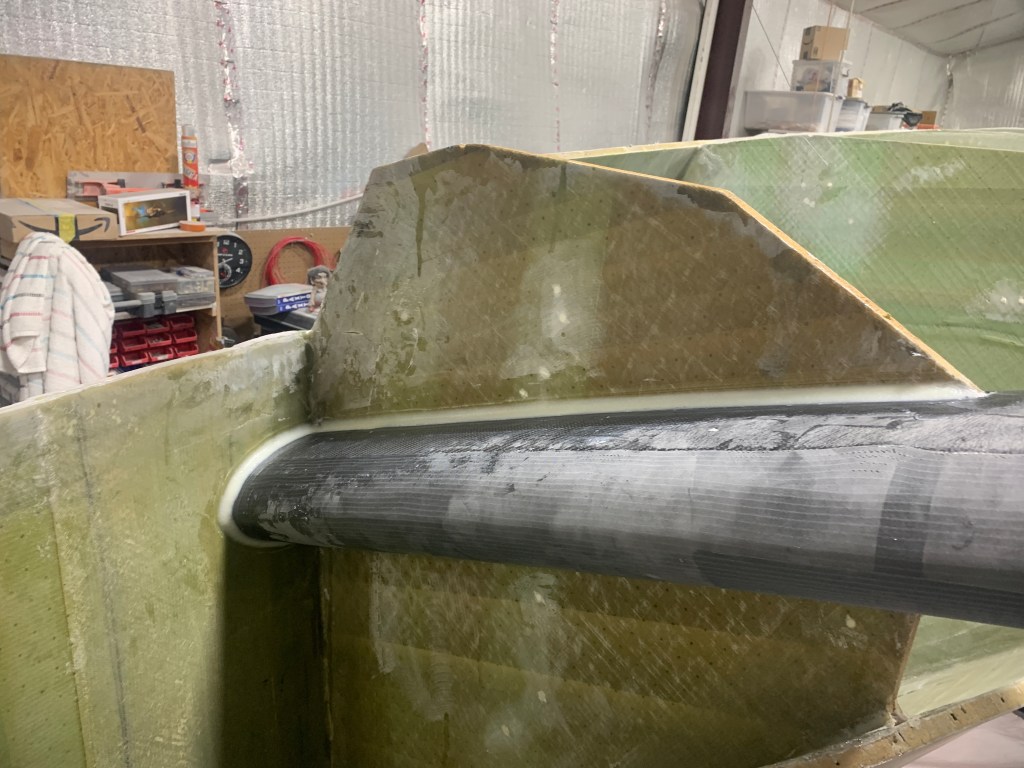

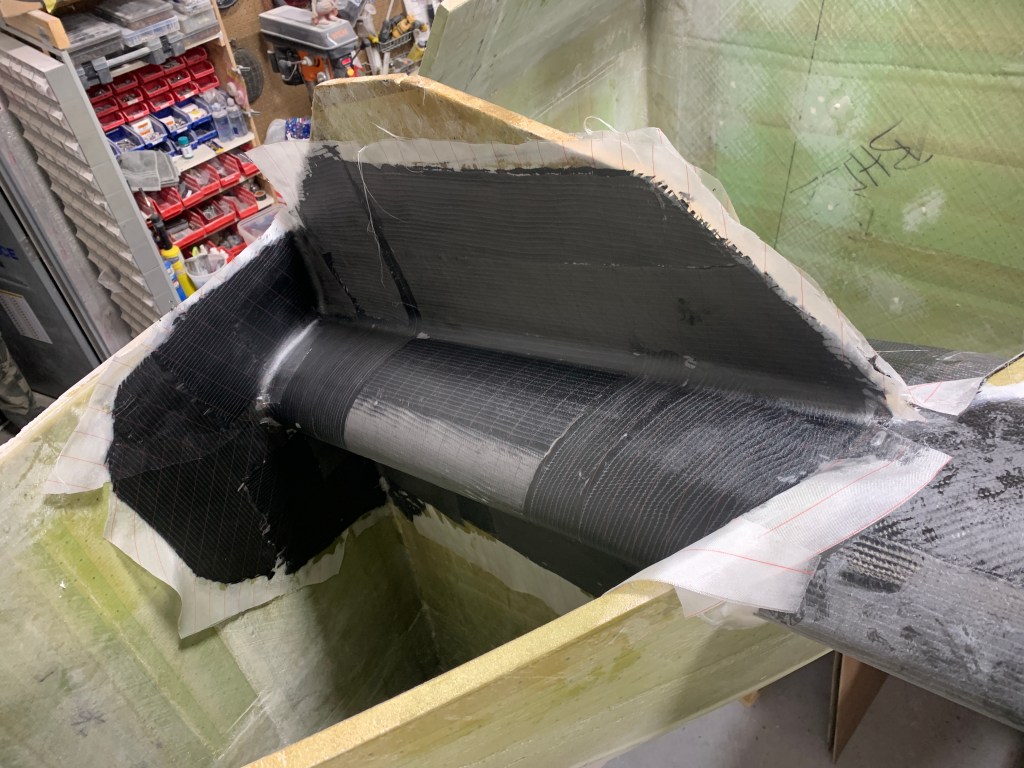

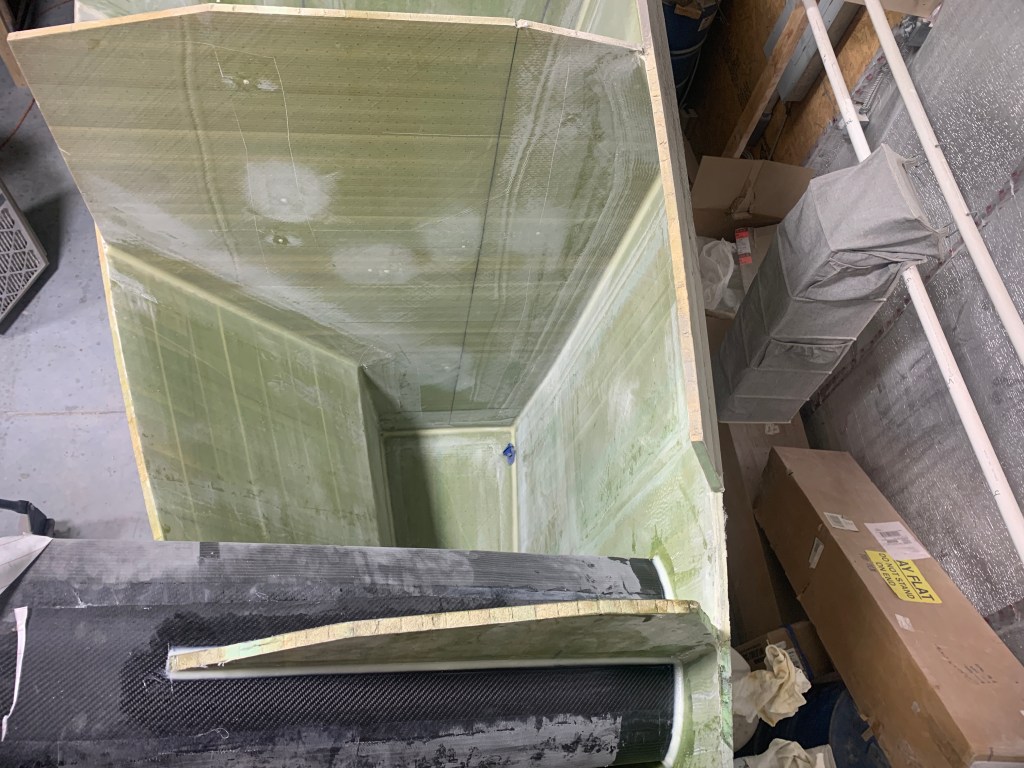

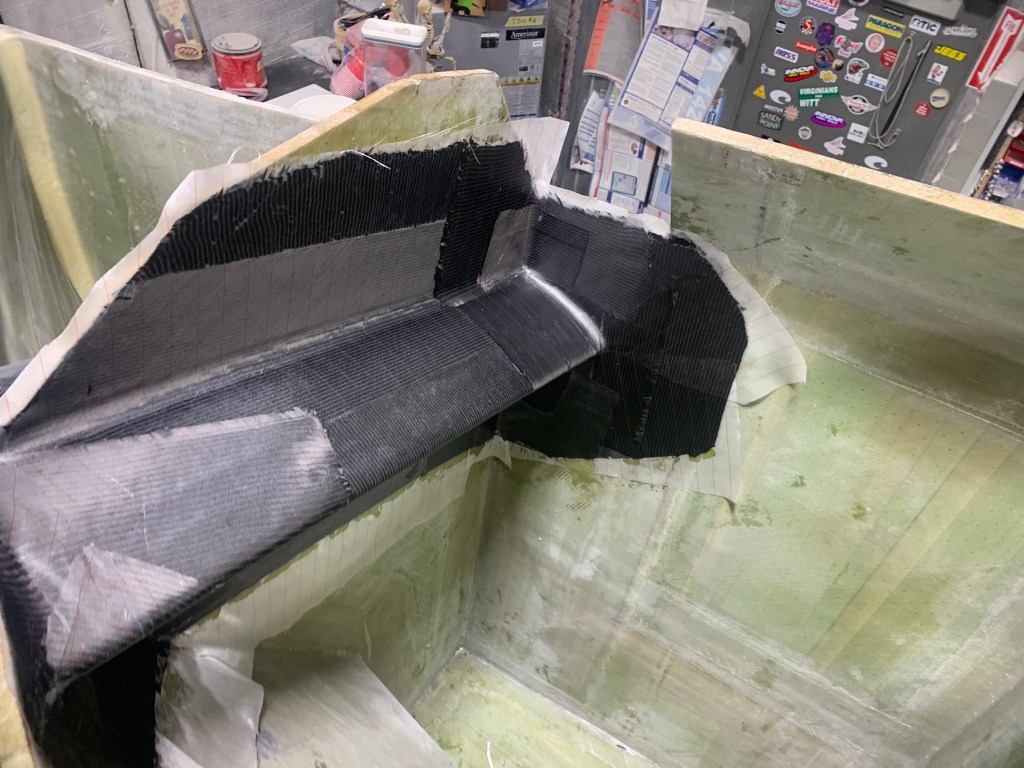

Carbon tabbing for forebeam

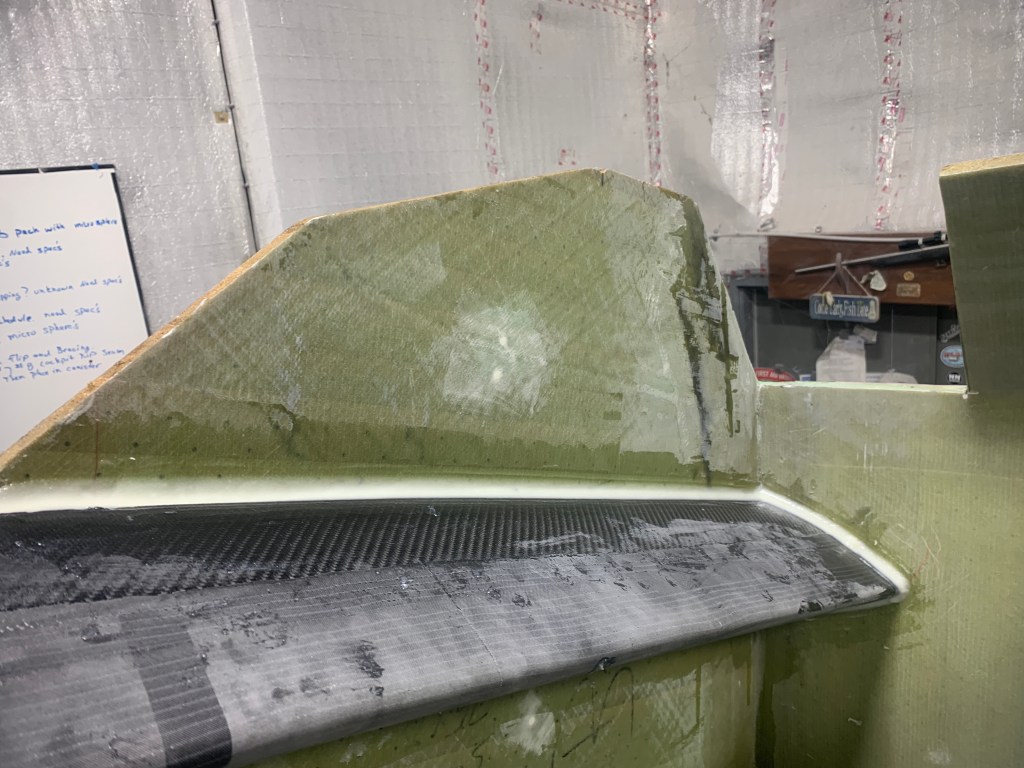

High load light weight carbon for beam to bulkhead joins
We use carbon fiber laminates for the structural union of the carbon beam and bulkheads

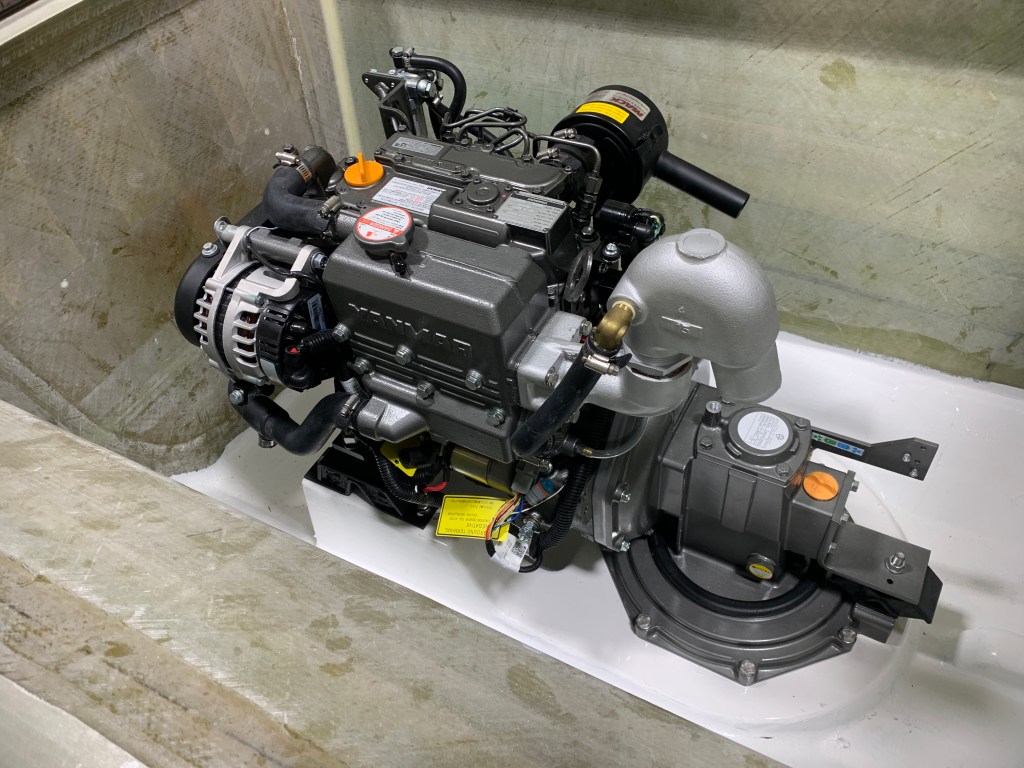

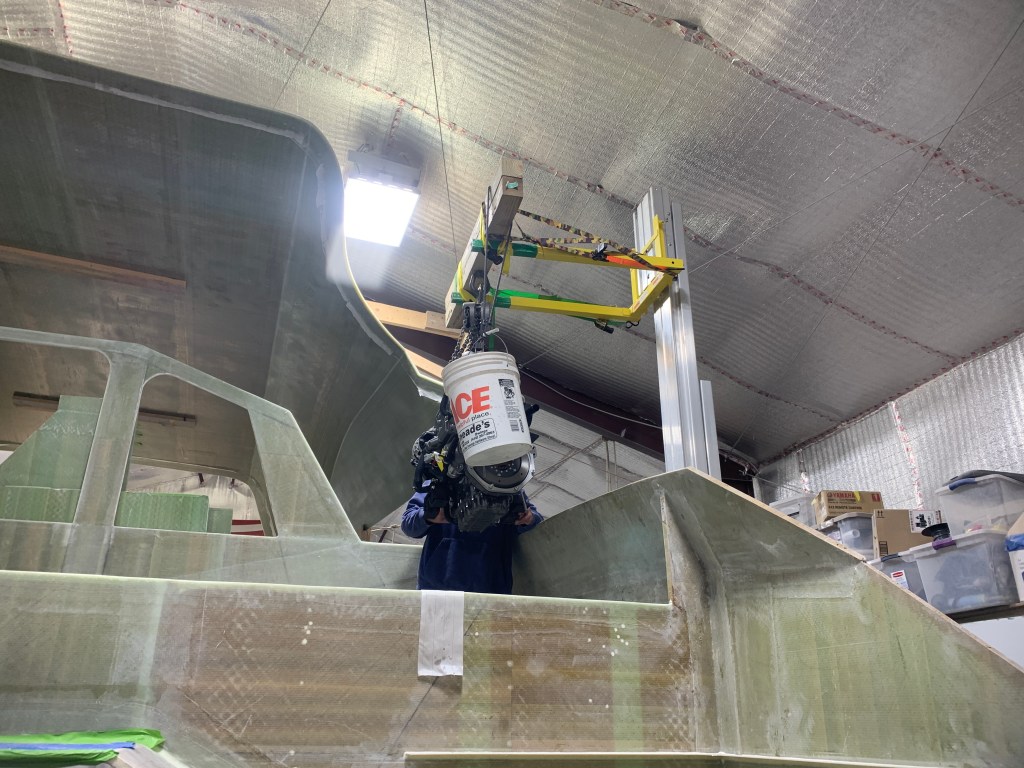

Installing the two Yanmar Diesel engines

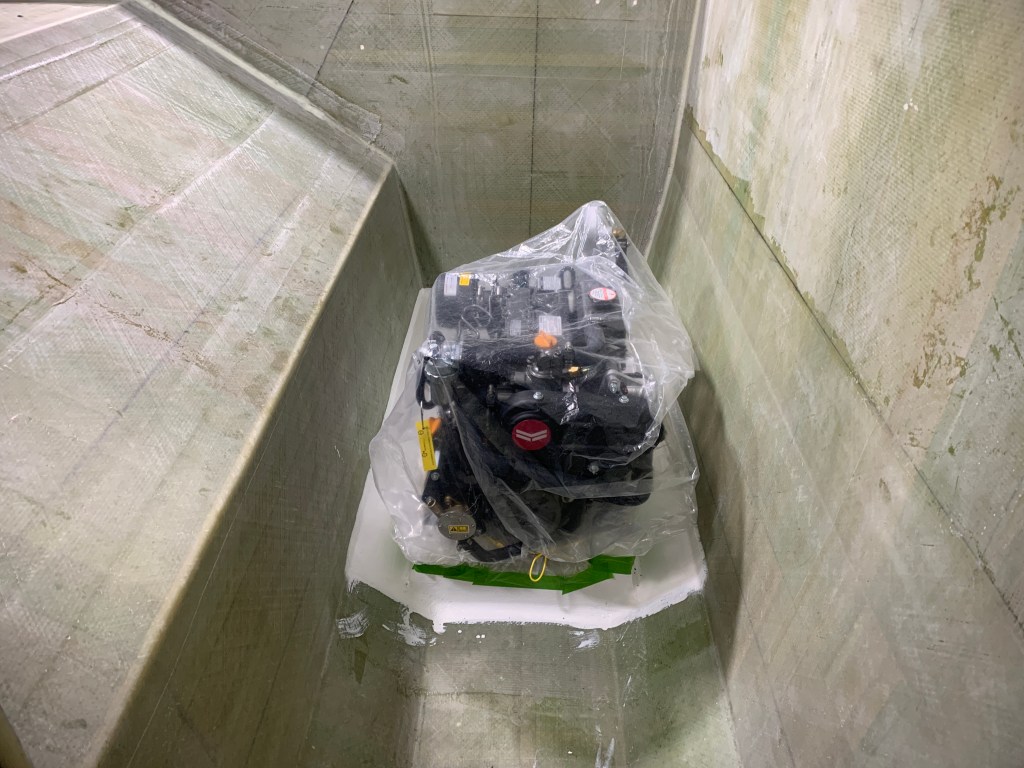

Motors installed and protect from dust
Saildrive installed first

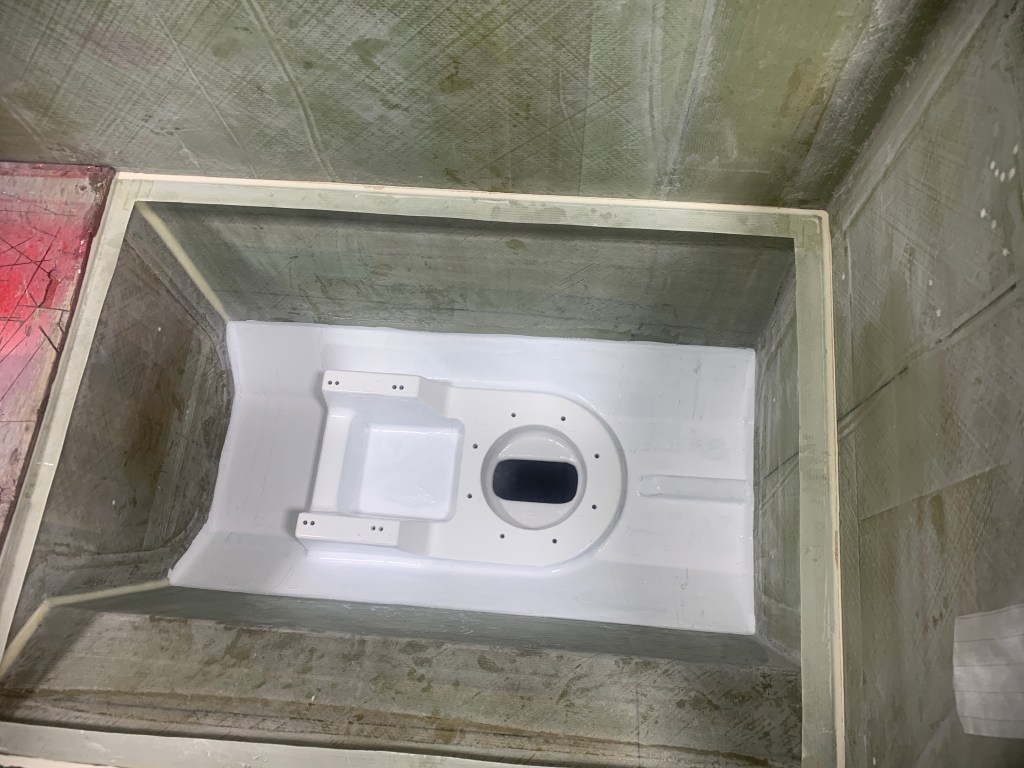

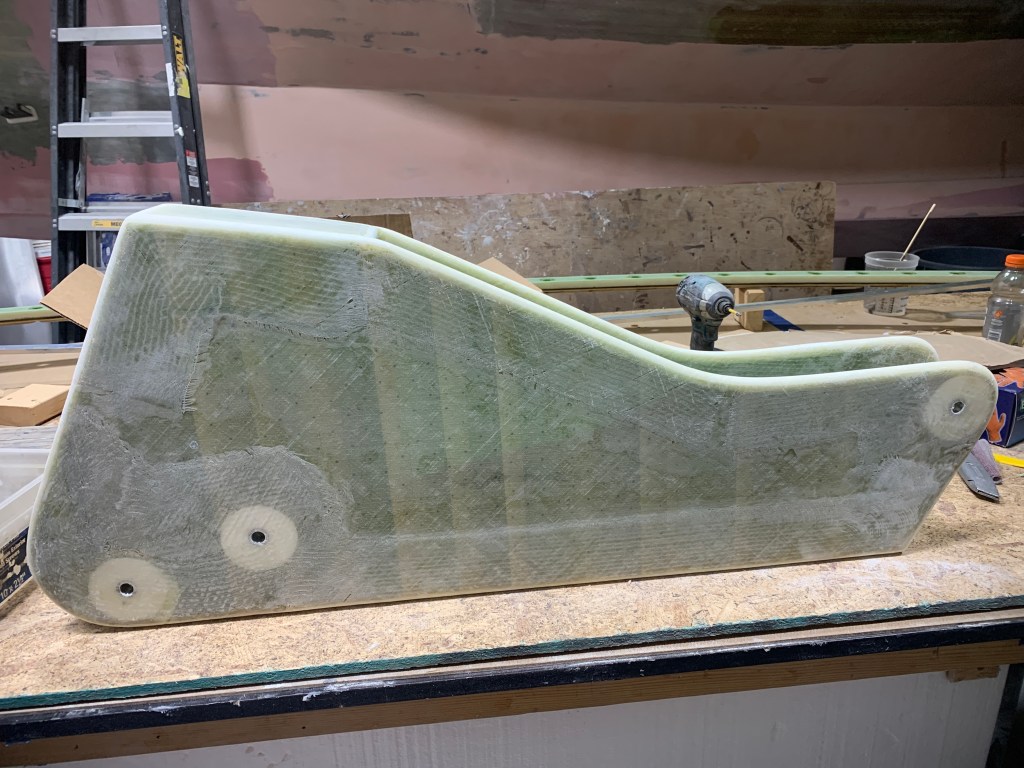

The fiberglass motor mounts are glassed to the hull
Carbon forebeam tabbed in. Carbon tabbing for high load areas

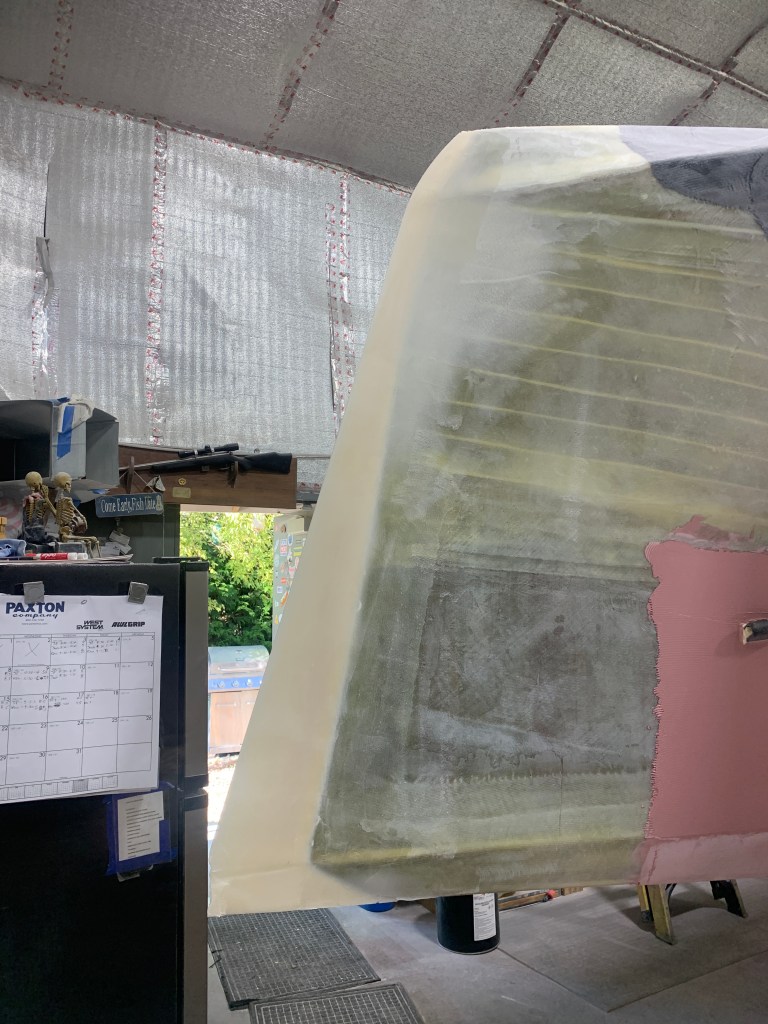

Lots of sanding in progress.

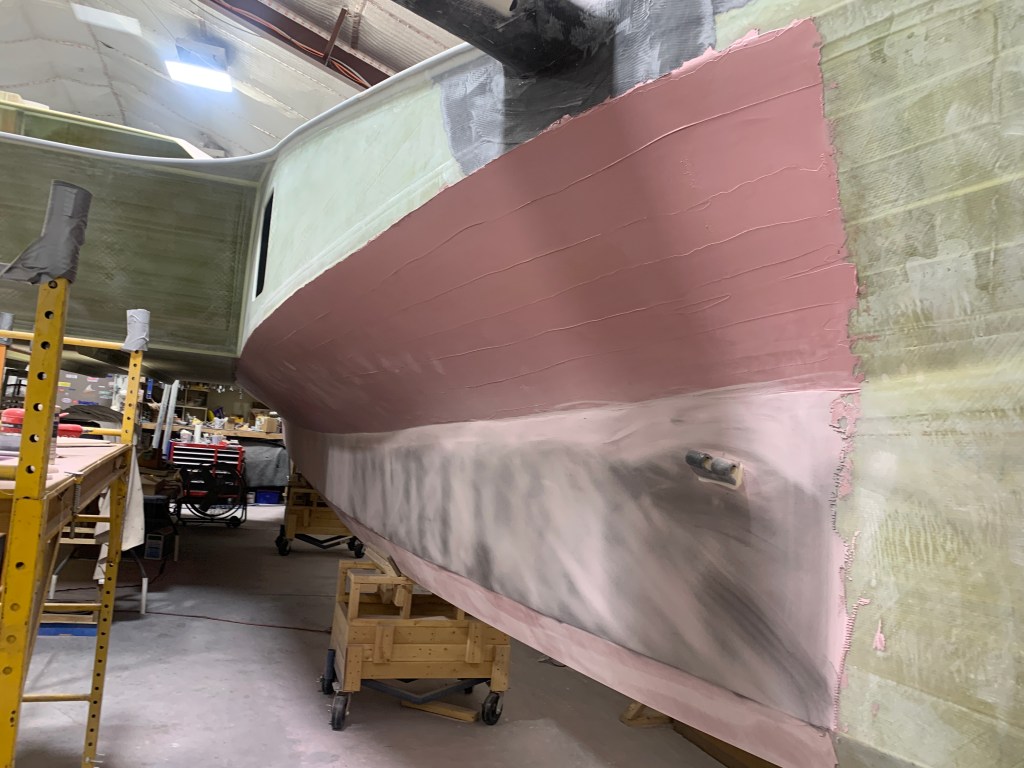

Fairing in work.

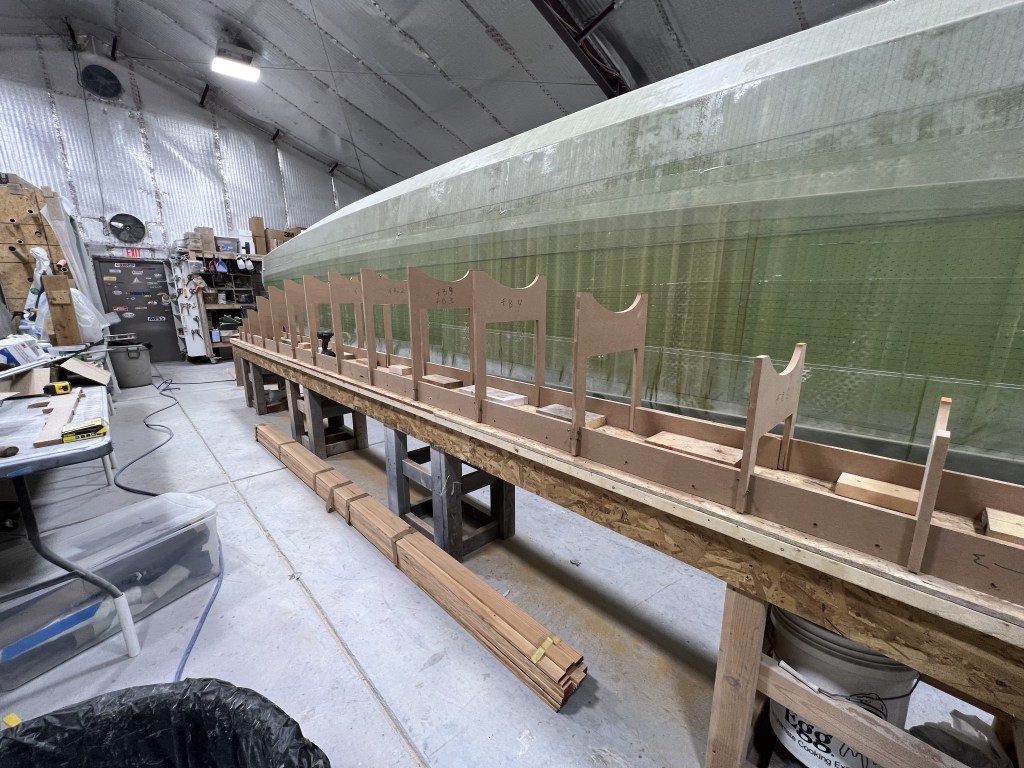

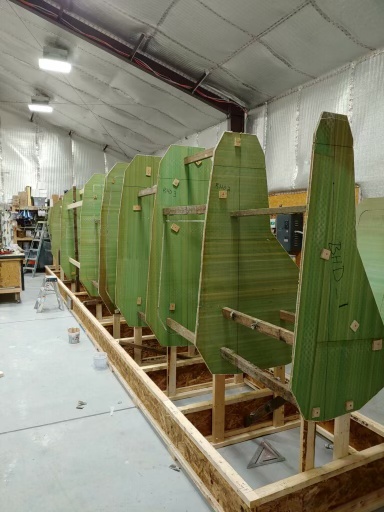

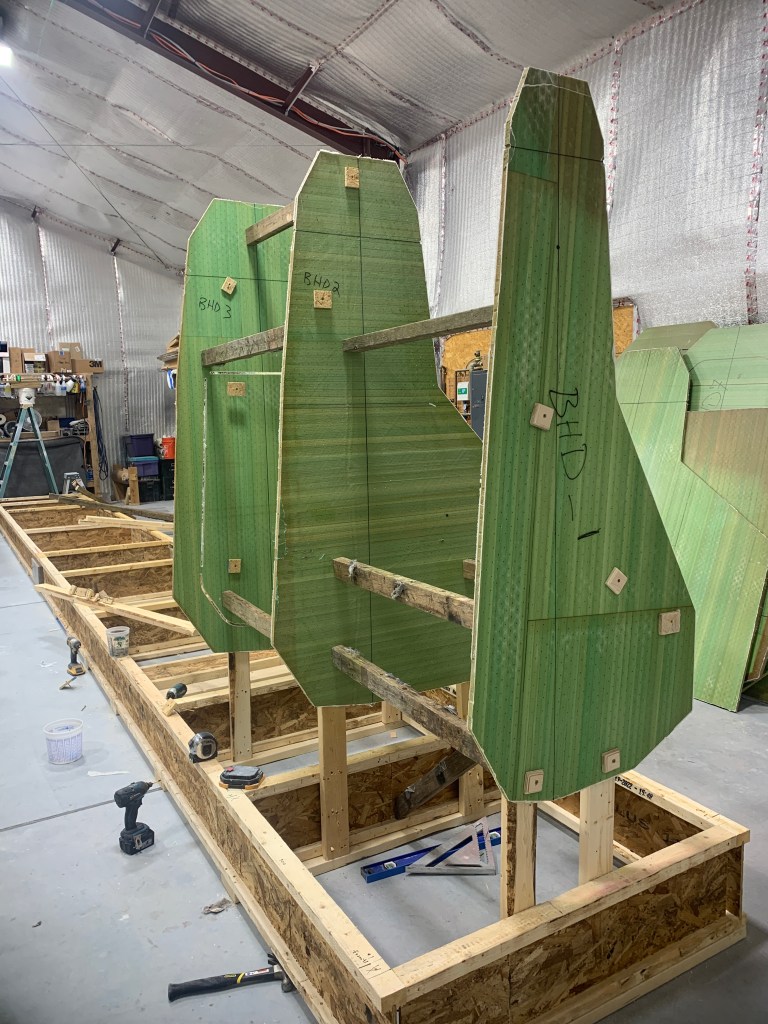

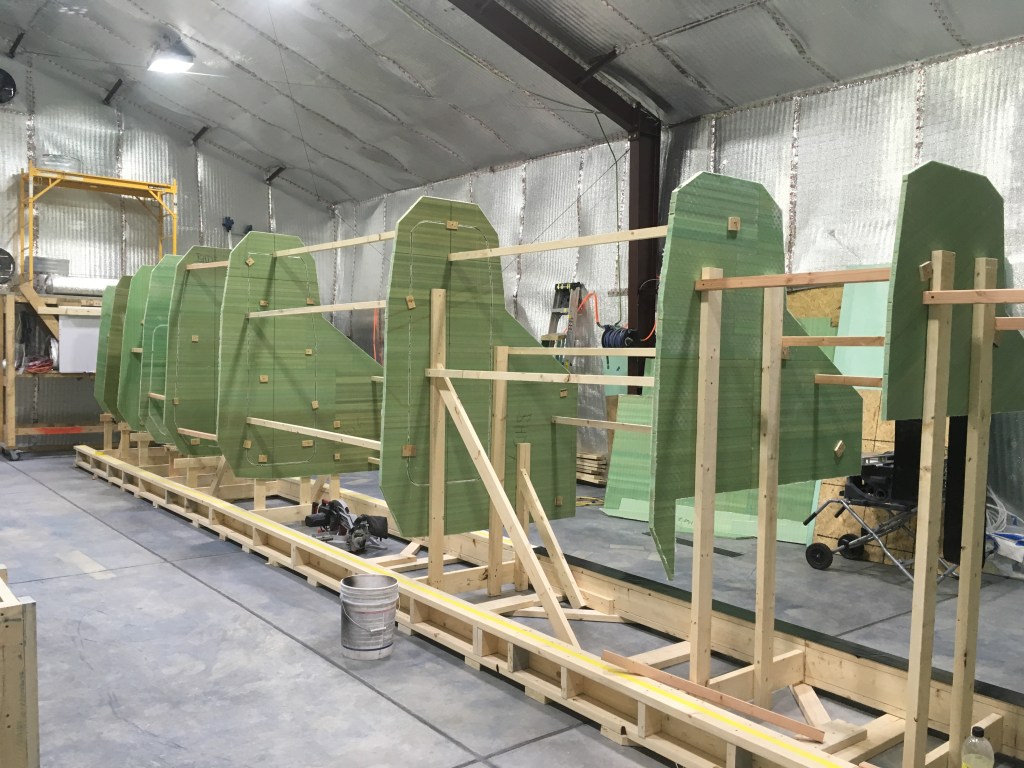

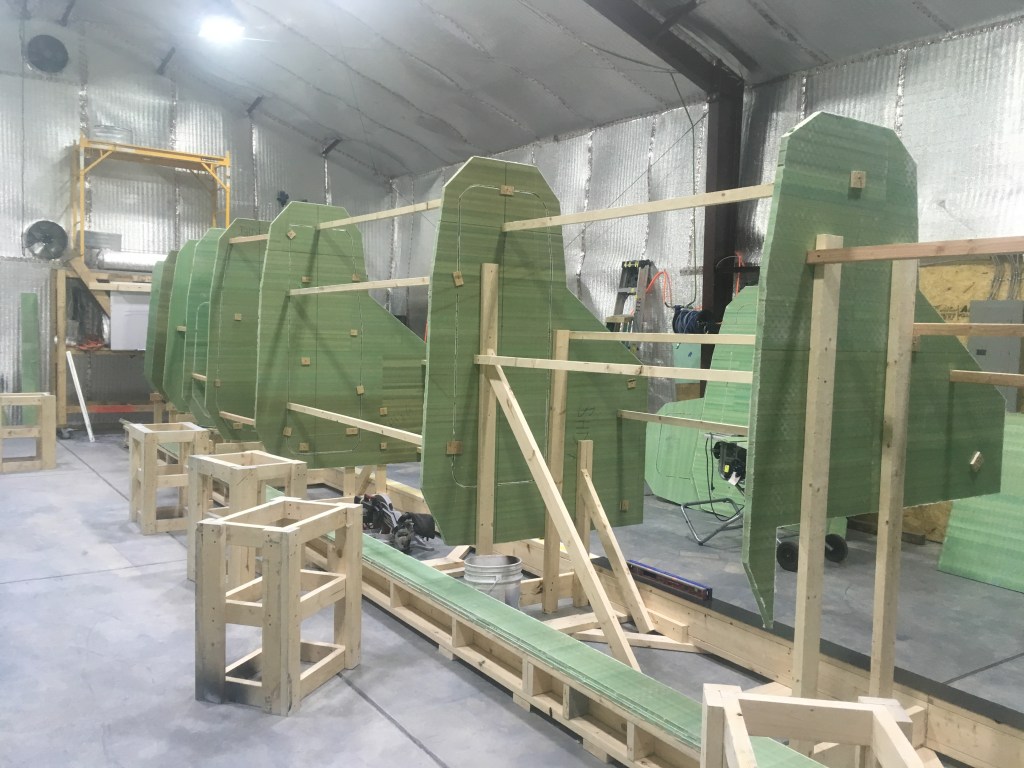

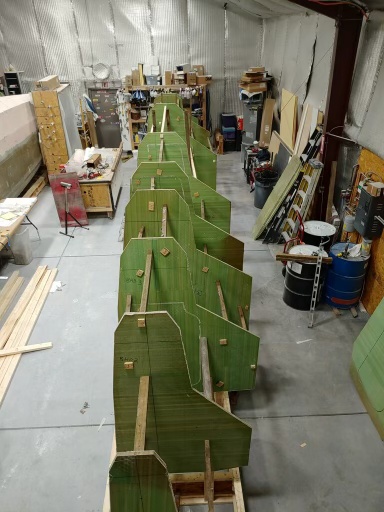

Bulkheads mounted to strongback.
Hull panels getting glued onto bulkheads
Getting a composite panel to flex is not easy. To protect the core we made blocks to prevent crushing the core.

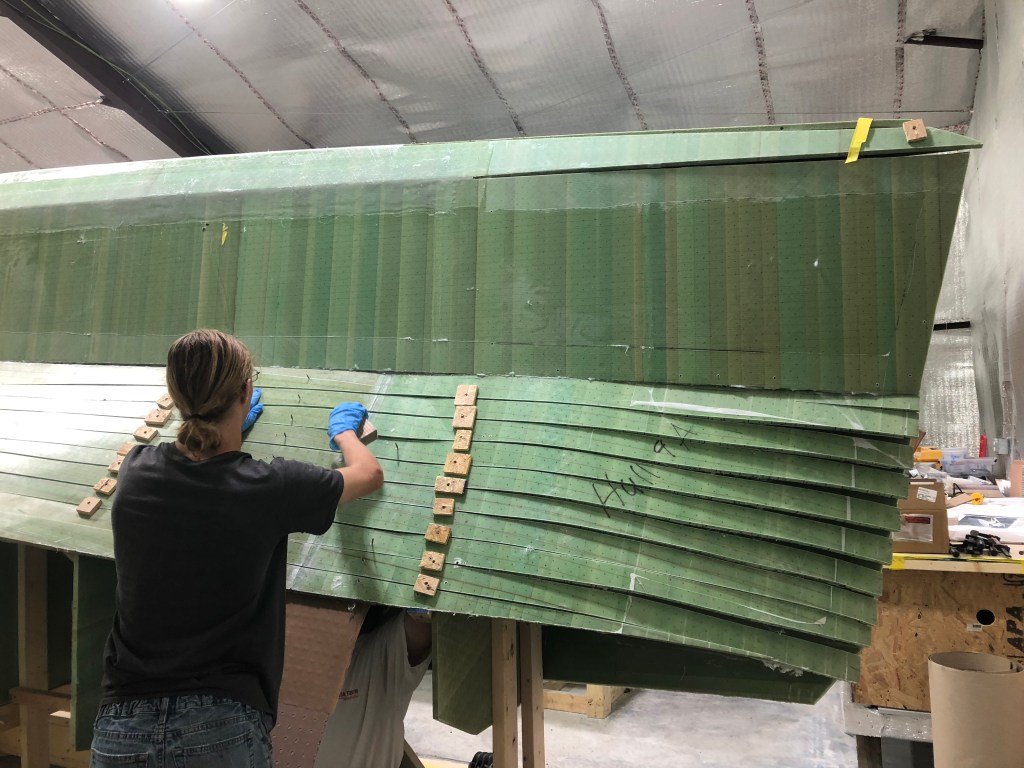

Strip planking to get the curves we needed.

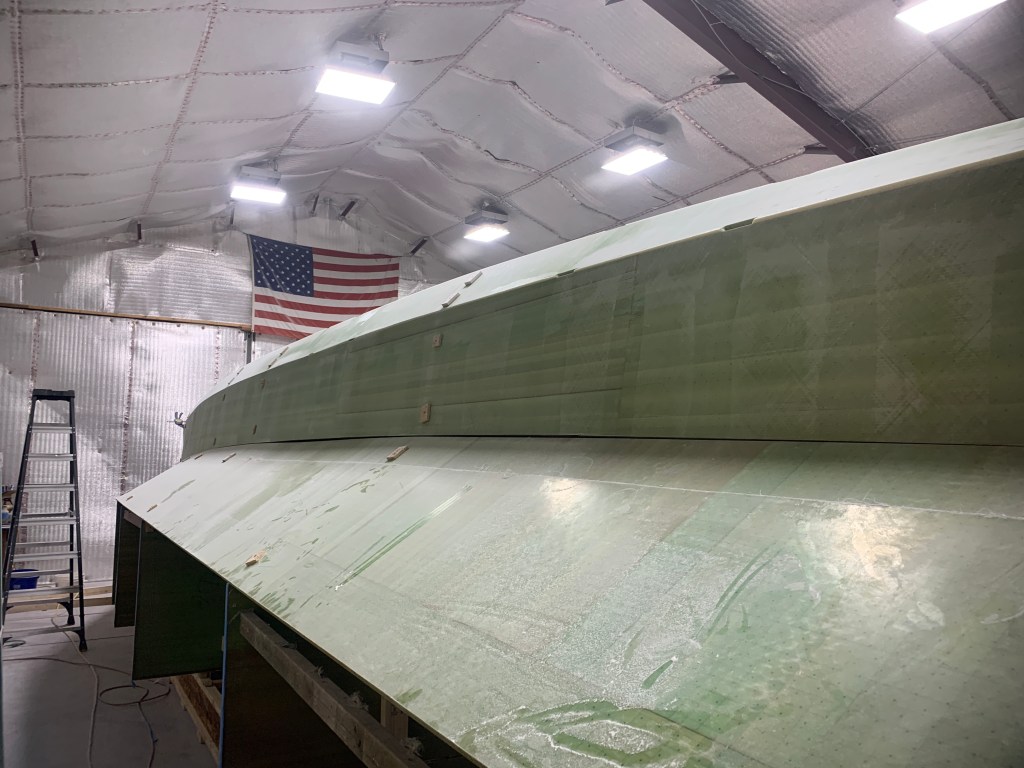

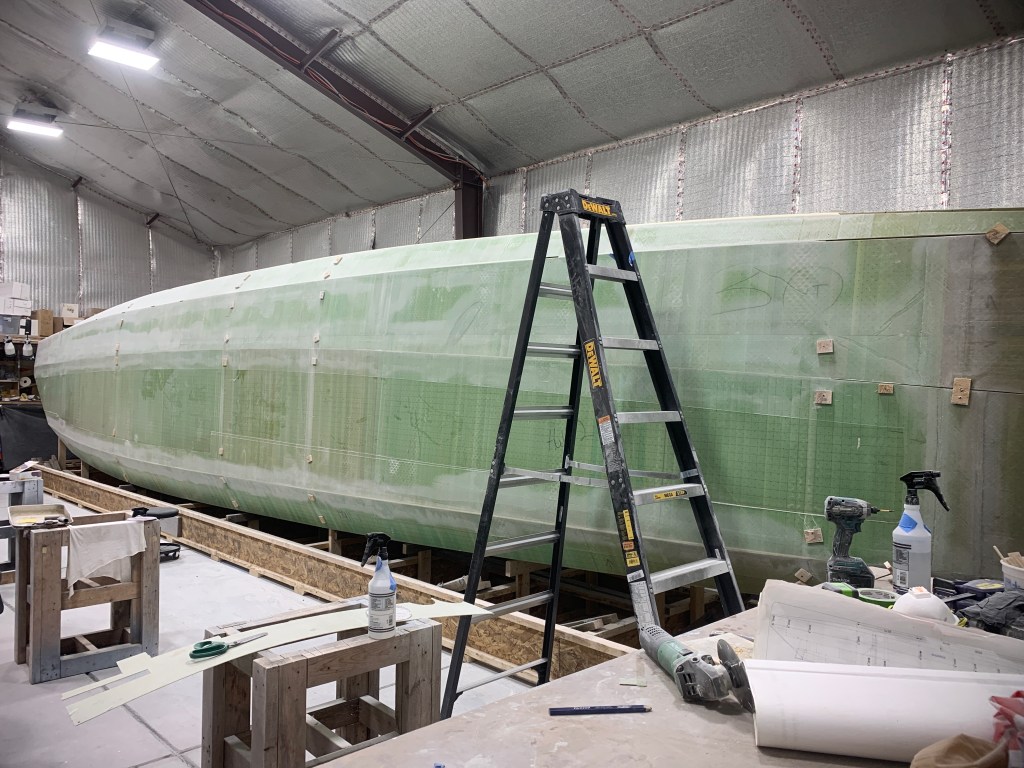

Fairing added and the torture boarding has begun.

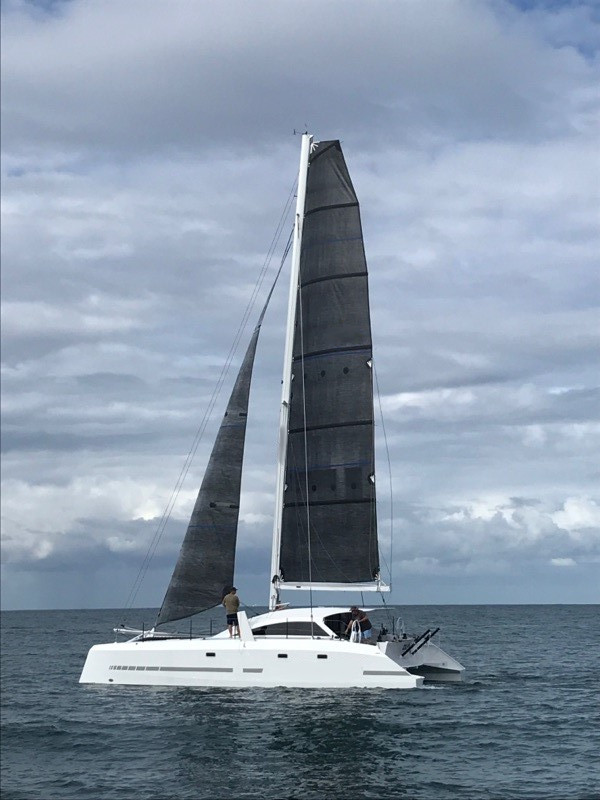

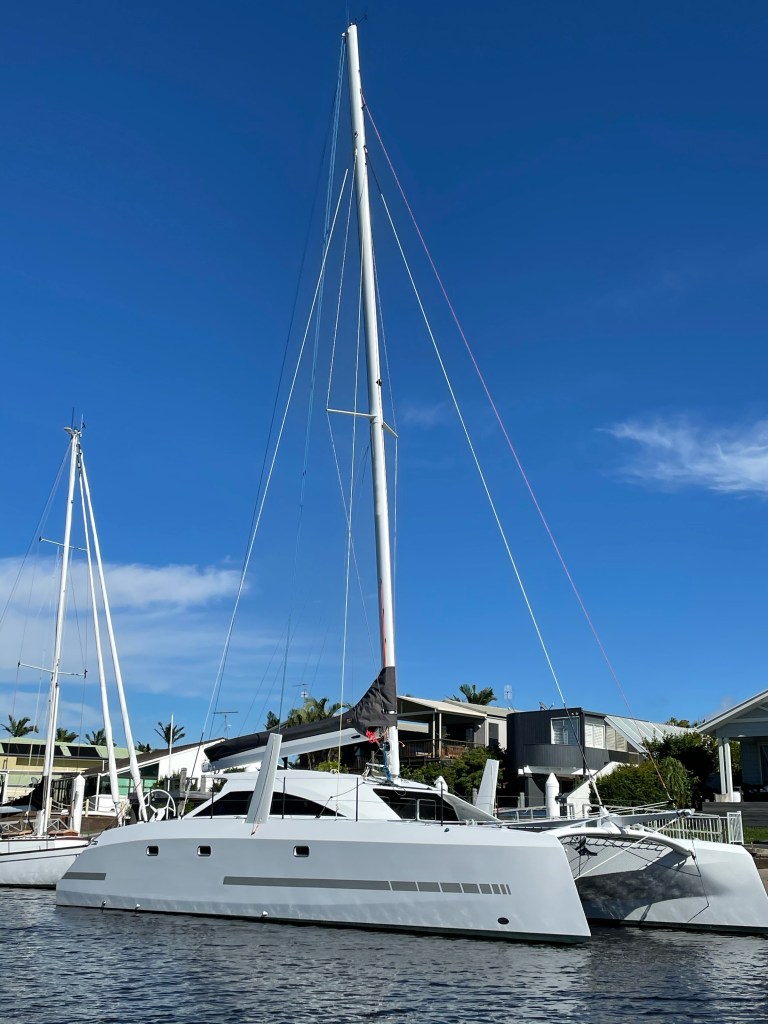

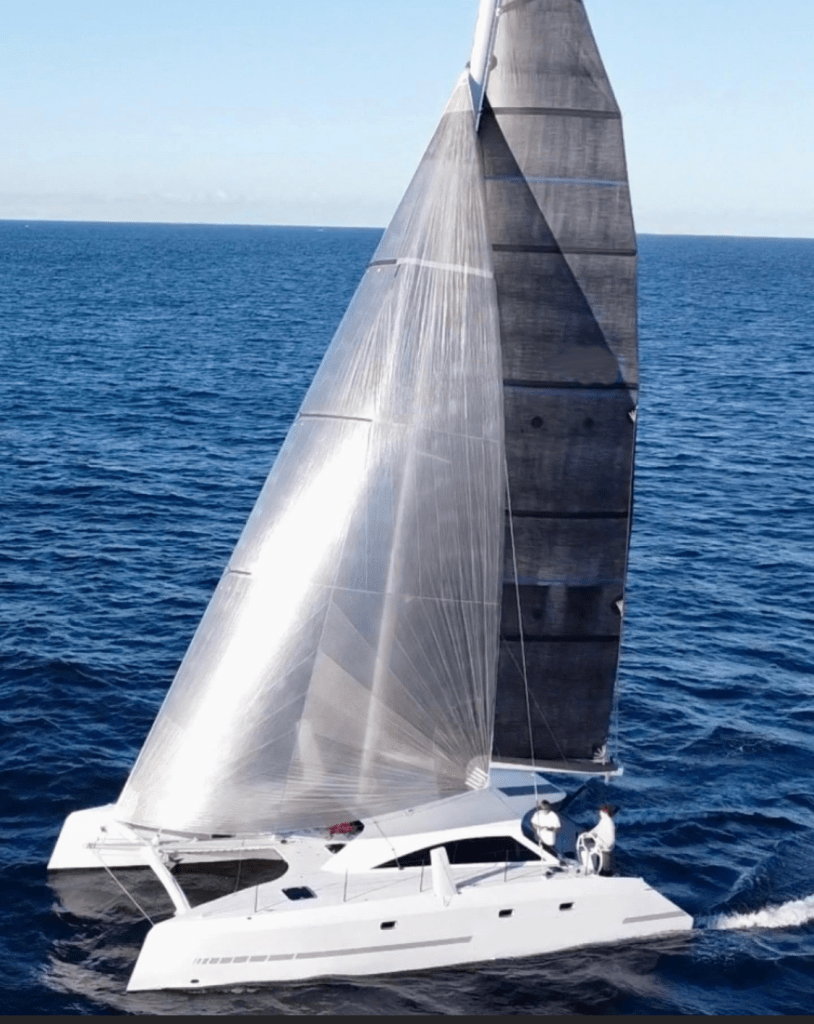

Finished product
First Arrow 1280 build in Australia
