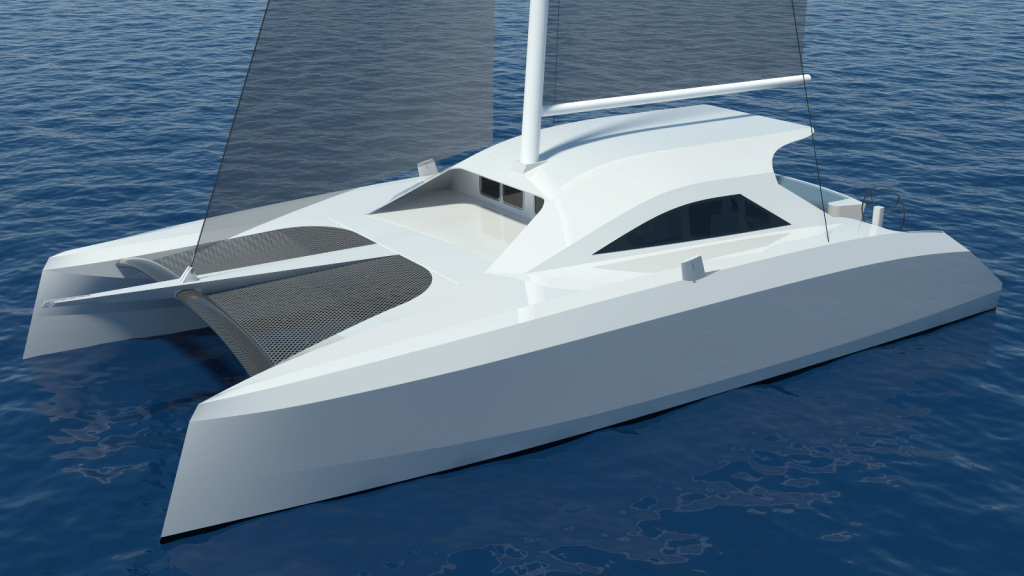

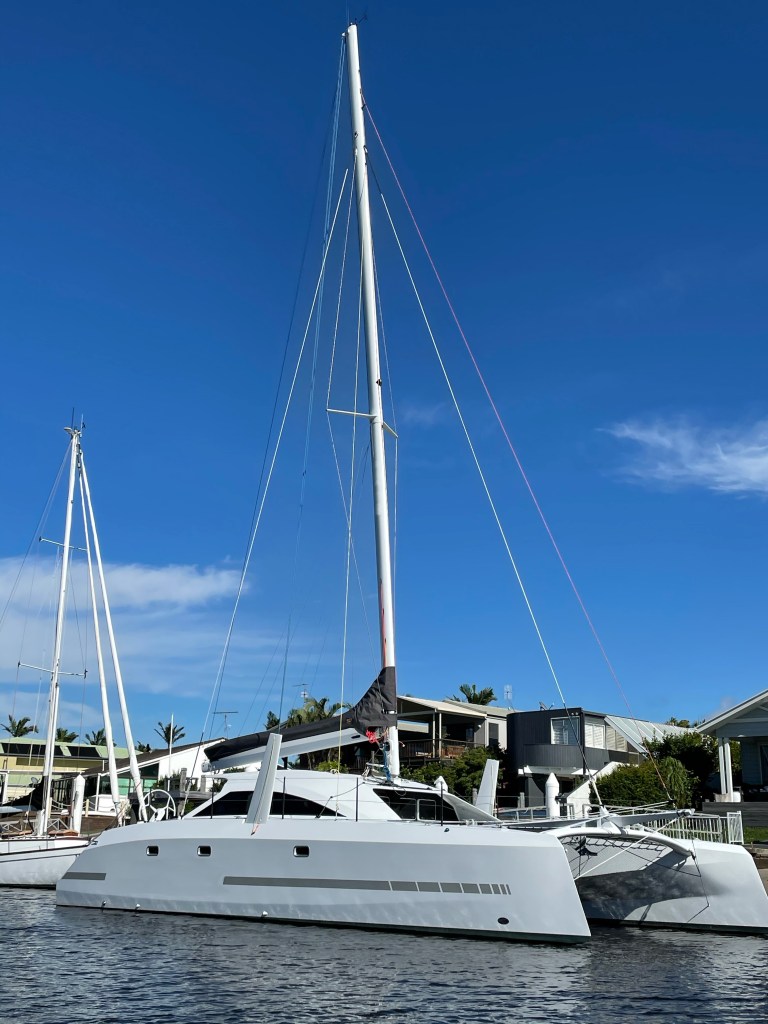

Arrow 1280S Overview

Specifications
LOA Â  12.80 meters
BOA Â  6.80 meters
DRAFT Â  0.400 meters
HEADROOM (Hulls)   Full Standing
HEADROOM  (Bridgedeck)   Full Standing
MAST HEIGHT Â  17.00 meters
PAYLOAD   1500 kg
DISPLACEMENT   4500 kg
BRIDGEDECK CLEARANCE Â  0.750 meters
BEAM TO LENGTH RATIO   15.2:1
MOTOR OPTION  30 hp Yanmar w/ Saildrive (2)
CRUISING SPEED   16 – 19 knots
TOP SPEED   25+ knots

Fit and Finish Details

  • Fit and Finish Details
  • Hull and deck:  epoxy resin infused closed cell core flat panels with fiberglass cloth.  Carbon fiber used in high load areas (fore beam to hull bulkheads), daggerboards, dagger trunks, forestay, and rudders.
  • Mast – Carbon (Est. Delivery Aug 2024 – NZ Rigging)
    • Aramid rigging
    • Furling/Self Tacking Jib
    • Carbon fiber park avenue boom with sail jacks
  • Sails – Evolution
    • Main – Element Membrane (Liteskin) Color Black
      • 61 m2
      • 70/30 carbon/twaron
      • 3 Reefs
      • Full batten squaretop
    • Self Tacking Furling Jib
      • 35 m2
      • Liteskin
      • Black
      • Vertical Battens
    • Screecher
      • 73 m2
      • Evo Technora
      • Continuous furler
    • A 2.5 Spinnaker
      • 135 m2
      • Black
      • Glow tapes in luff seams
      • ATN snuffer sleave
  • Deck hardware and winches – All Harken hardware
    • Harken 42 self tailing winches (6 total)
  • Daggerboards
    • Carbon fiber painted to match hull
  • Rudders
    • Carbon fiber with stainless steel shaft
  • Forward beam
    • Carbon fiber
  • Hull panels
    • Infused epoxy laminates on closed cell core panels
    • Joined with cabosil/cotton flock high density fillers and epoxy/fiberglass tape lines
    • Faired with epoxy 2 part fairing compound
  • Engines
    • 2X Yanmar Engine 29hp w/SD (3YM30AE) Inboard Diesels
    • Yanmar saildrives with gori 3 blade folding props
    • High output alternator (125 amp)
  • Fuel tank – 80 Gal Diesel
  • Fresh Water – 80 Gal
  • Holding Tank – 20 Gal
  • Paint – boat can be painted to suit customer preference (any Awlgrip/Awlcraft product)
  • 1 head
    • Option to add a second under single forward bunk.
  • Standalone shower
  • Cooktop –3 burner gas cooktop, combination burner/oven can be added per customer requirement
  • Electrical –
    • 2 x VICTRON LITHIUM BATTERY 12VDC – 330AH – SMART LIFEPO4 (total of 660 AH @ 12VDC)
    • VICTRON QUATTRO INVERTER/CHARGER 12 VDC – 5000W -DUAL 100AMP 120VAC INPUTS – AUTO TRANSFER SWITCH – 200AMP BATTERY CHARGER –
    • 2 x VICTRON GALVANIC ISOLATOR VDI-32A 32A MAX WATERPROOF
    • VICTRON BLUE SMART IP65 CHARGER 12/5(1) 120V
    • 2 x VICTRON VE.BUS BMS F/VICTRON LIFEPO4 BATTERIES 12-48VDC WORKS W/ALL VE.BUS
    • VICTRON ORION-TR SMART 12/12-30 30A (360W) ISOLATED DC-DC CHARGER OR POWER SUPPLY
    • VICTRON BMV-712 BLACK SMART BATTERY MONITOR
    • VICTRON SMARTSOLAR MPPT CHARGE CONTROLLER – 100V – 50AMP – UL APPROVED
    • VICTRON COLOR CONTROL GX MONITOR – BUTTON CONTROL
    • VICTRON SMART BATTERYPROTECT – 220AMP – 6-35 VDC – BLUETOOTH CAPABLE
    • 6 electric bilge pumps
    • 2 x 12 V, 70 A/h engine starter batteries with bipolar battery isolating switches
    • 1000 W vertical electric windlass
    • Navigation lights (LED), masthead light, mooring light (LED) and decklight.
    • Shore power outlet with differential circuit breaker and galvanic protection
  • Fridge
  • 3 double beds, plus single bunk
  • Navigation, Communication and Marine Electronics
    • Dual B&G Zeus S 9 Chartplotter AMER. 9-inch SolarMAXâ„¢ high definition display. Built-in GPS, and WIFI, 1 kW echosounder. Unique Sailing Modes and enhanced sailing features, Next-generation C-MAP® DISCOVERâ„¢ X chart included.
    • Dual Triton² Speed / Depth /Wireless Wind Instrument pack. Includes 2x Triton² Instrument Display, DST810 Depth/Speed/Temperature transducer, WS320 Wireless Wind Sensor and a NMEA2000 starter kit.
    • The ZG100 GPS Antenna with Integrated Compass sensor providing Heading, Heel and Trim.
    • B&G V60 fixed-mount DSC VHF Radio – Stay safe and connected with this VHF marine radio featuring a sleek design with removable fist mic, Class D DSC functionality, and built-in GPS.  With Masthead antenna.
  • Optional equipment (can be included per customer requirement)
  • Dual carbon fiber helms (clear coat, white or black)
  • Autopilot – B&G
  • AIS – transmit – B&G
  • Radar – HALO20 Radar
  • Tender and outboard (Carbon fiber light weight option available)
    • OC330 TENDER with 15hp 4 stroke Yahama
  • Second head to be built under starboard forward single bunk.
  • Second helm throttle station:
  • AC/Reverse cycle – can be added per customer requirement.
  • Solar –capacity will be tailored to customer requirements
  • Freezer -Engel stand-alone DC/AC fridge or freezer
  • Water maker – boat will be plumbed for a watermaker.
